Tractors > New Holland > TJ430

New Holland TJ430 - tests

New Holland TJ430 tractor photo
2006 - 2007   TJ II Series
Four-wheel Drive (4WD) tractor
Previous model:New Holland TJ425
Next model:New Holland T9040
Series next:New Holland TJ480
Series back:New Holland TJ380
more New Holland TJ430 specifications...






OCED Tractor Test 1909A:

Nebraska summary:582

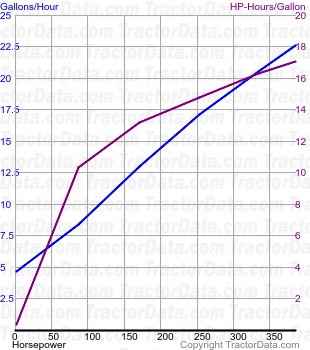

TJ430 fuel use from test 582
Test Date:September 25 - October 12, 2007
Type:Diesel 16-speed 4WD
PTO power (max):438.97 hp [327.3 kW]
PTO fuel use (max):24.5 gal/hour [92.7 l/hour]
PTO power (rated engine speed):384.59 hp [286.8 kW]
PTO fuel use (engine speed):22.5 gal/hour [85.2 l/hour]
Drawbar power (max):351.28 hp [261.9 kW]
Drawbar fuel use (max):22.1 gal/hour [83.6 l/hour]
Drawbar pull (max):36,669 lbs [16633 kg]
Max pull gear:2
Test report:PDF file
