Tractors > New Holland > TJ380

New Holland TJ380

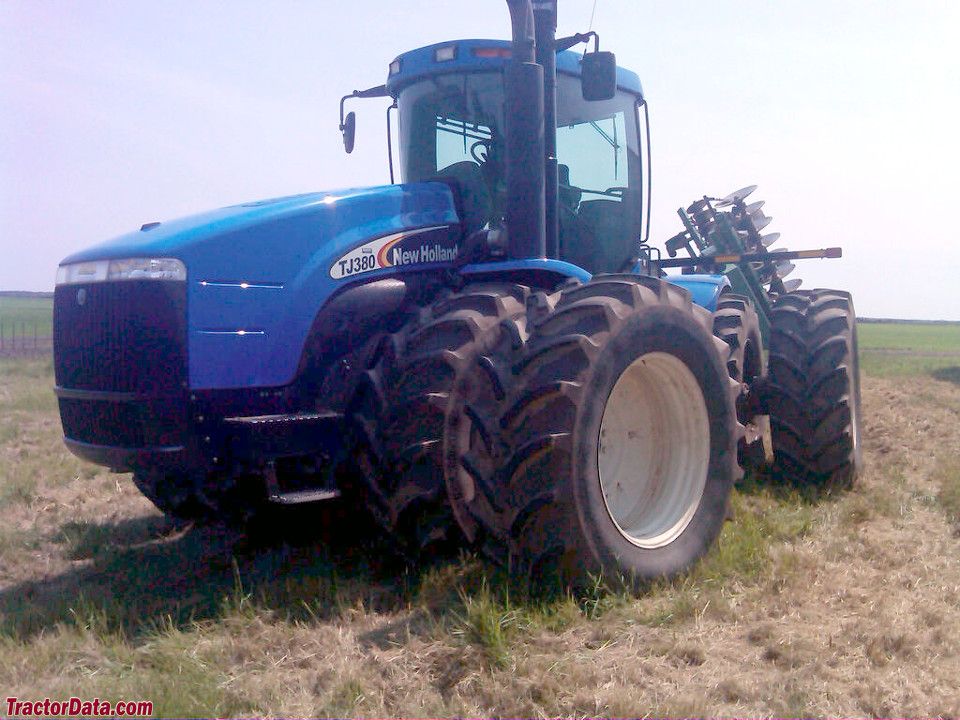

New Holland TJ380 tractor photo
2006 - 2007   TJ II Series
Four-wheel Drive (4WD) tractor
Previous model:New Holland TJ375
Next model:New Holland T9030
Series next:New Holland TJ430
Series back:New Holland TJ330






Production:

Manufacturer:New Holland
Factory:Fargo, North Dakota, USA


New Holland TJ380 Engine:

   Iveco 12.9L 6-cyl diesel
full engine details ...


Capacity:

Fuel:300 gal [1135.5 L]


3-Point Hitch:

Rear Type:IVN (optional)
Rear lift (at 24"/610mm):19,620 lbs [8899 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:1000 (optional)


Dimensions & Tires:

Wheelbase:154 inches [391 cm]
Weight:41,605 lbs [18872 kg]
Front tire:20.8R42
Rear tire:20.8R42
full dimensions and tires ...


TJ380 Serial Numbers:


- Serial numbers unknown -



New Holland TJ380 Power:

Engine:380 hp [283.4 kW]
PTO (claimed):380 hp [283.4 kW]
Drawbar (tested):319.41 hp [238.2 kW]
PTO (tested):390.87 hp [291.5 kW]
power test details ...


Mechanical:

Chassis:4x4 articulated 4WD
Steering:hydrostatic power
Brakes:integral hydraulic wet disc
Cab:Cab standard with heat and air-conditioning


Hydraulics:

Type:closed center load sensing (CCLS)
Pressure:2000 psi [137.9 bar]
Valves:4 to 9
Pump flow:33 gpm [124.9 lpm]
Total flow:40 gpm [151.4 lpm]
 55 gpm [208.2 lpm] (optional)
 90 gpm [340.7 lpm] (optional MegaFlow)


Electrical:

Ground:negative
Charging system:alternator
Charging amps:175


Battery:

Number:2
Volts:12
Amp-hours:1000
