New Holland TG305

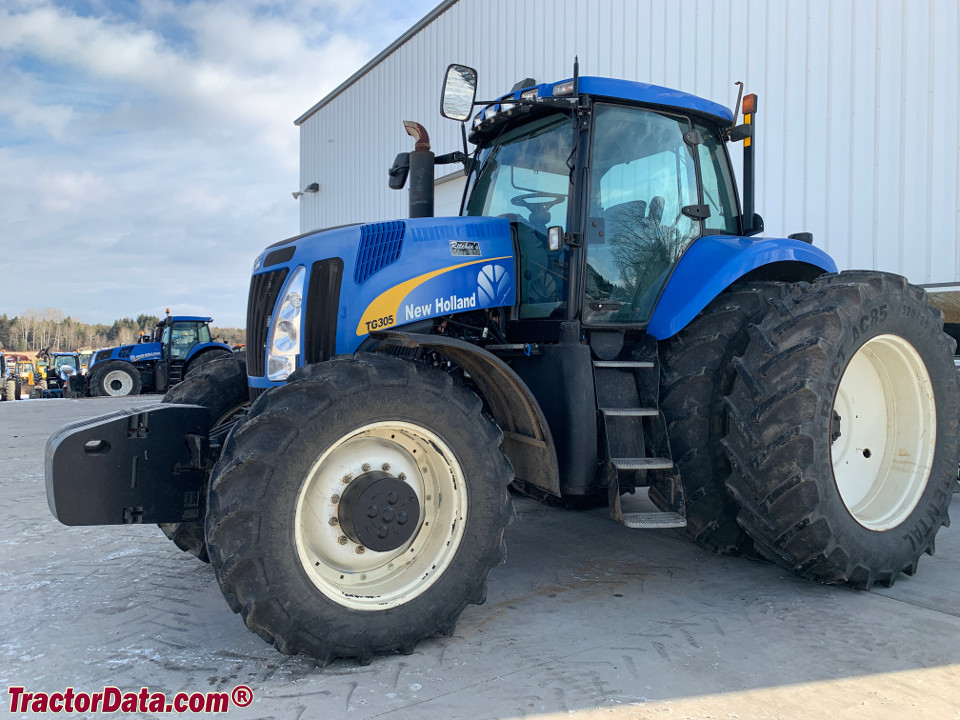

New Holland TG305 tractor photo
2006 - 2007
TG II Series
Row-Crop tractor
Manufacturer:New Holland
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
New Holland TG305 Power
Engine:304 hp
226.7 kW
PTO (claimed):255 hp
190.2 kW
Drawbar (tested):216.31 hp
161.3 kW
PTO (tested):257.22 hp
191.8 kW
power test details ...
New Holland TG305 Engine
CNH 8.3L 6-cyl diesel
Fuel tank:180 gal
681.3 L
Engine details ...
Chassis:4x4 MFWD 4WD
Brakes:differential hydraulic wet disc
Cab:Cab standard with air-conditioning.
Transmissions:18-speed full power shift
 19-speed full power shift
 23-speed full power shift
Transmission details ...
Type:closed center load sensing (CCLS)
Valves:3 to 5
Total flow:38.6 gpm
146.1 lpm
 70 gpm
264.9 lpm *Optional MegaFlow.
Tractor hitch
Rear Type:IIIN/III
Rear lift:14,970 lbs
6790 kg
 17,920 lbs
8128 kg (optional)
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1.75)
 540/1000 (1.375)
Dimensions & Tires
Wheelbase:121.2 inches
307 cm
 129.3 inches
328 cm (SuperSteer)
Weight:20370 to 21665 pounds
Full dimensions and tires ...
Charging system:alternator
Charging amps:150
