Tractors > Kubota > M110X

Kubota M110X

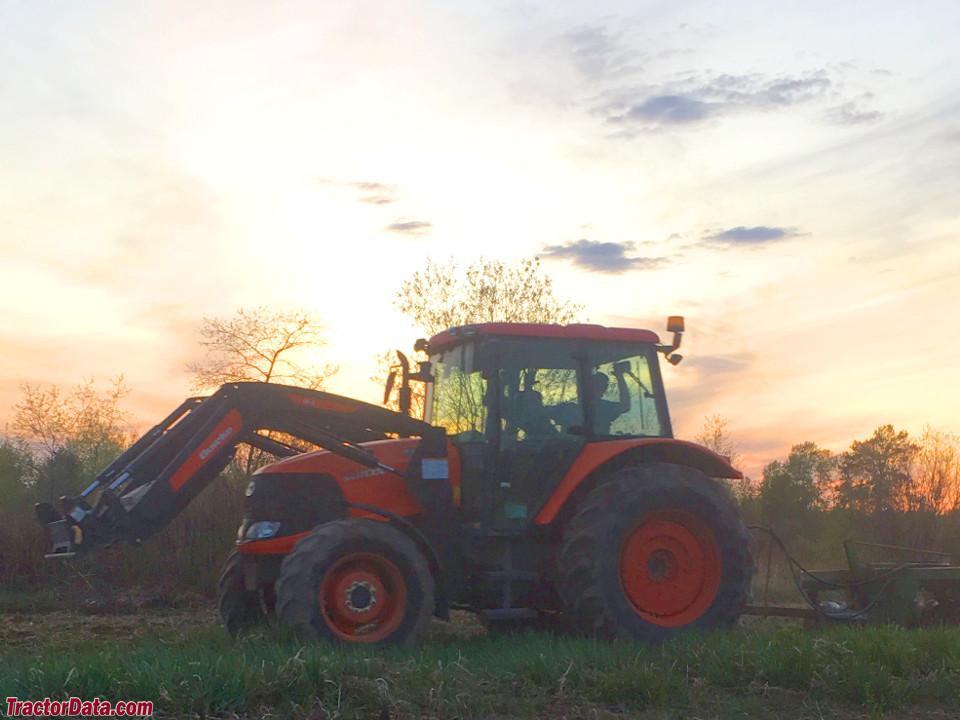

Kubota M110X tractor photo
2009 - 2014
Row-Crop tractor
Previous model:Kubota M105X
Series next:Kubota M126X
Series back:Kubota M100X






Production:

Manufacturer:Kubota
Original price (USD)
   $60,124 (2011 )
   $62,860 (2012 )


Kubota M110X Engine:

   Kubota 3.8L 4-cyl diesel
full engine details ...


Capacity:

Fuel:50.2 gal [190.0 L]
Hydraulic system:15.8 gal [59.8 L]
Front axle:11.1 qts [10.5 L]


3-Point Hitch:

Rear Type:II
Rear lift (at ends):5809 lbs [2634 kg]
Rear lift (at 24"/610mm):5203 lbs [2360 kg]
 9447 lbs [4285 kg] *Optional


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000 (1.375)
Engine RPM:540@2035
1000@2210


Dimensions & Tires:

Wheelbase:95.9 inches [243 cm]
Weight:9050 lbs [4105 kg]
Front tire:13.6R24
Rear tire:18.4R34
full dimensions and tires ...


Kubota M110X attachments:

 front-end loader
all M110X attachments ...


M110X Serial Numbers:


- Serial numbers unknown -



Kubota M110X Power:

Engine (gross):110 hp [82.0 kW]
Engine (net):107.5 hp [80.2 kW]
PTO (claimed):95 hp [70.8 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:electro-hydraulic front and rear
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Cab standard with heat and air-conditioning. Optional radio/CD-player.


Hydraulics:

Type:open center
Capacity:15.8 gal [59.8 L]
Pressure:2844 psi [196.1 bar]
Valves:2 to 4
Pump flow:18.1 gpm [68.5 lpm]
Total flow:35.3 gpm [133.6 lpm]
Steering flow:17.2 gpm [65.1 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:80


Battery:

Cold-cranking amps:900
Volts:12
