Challenger MT665C

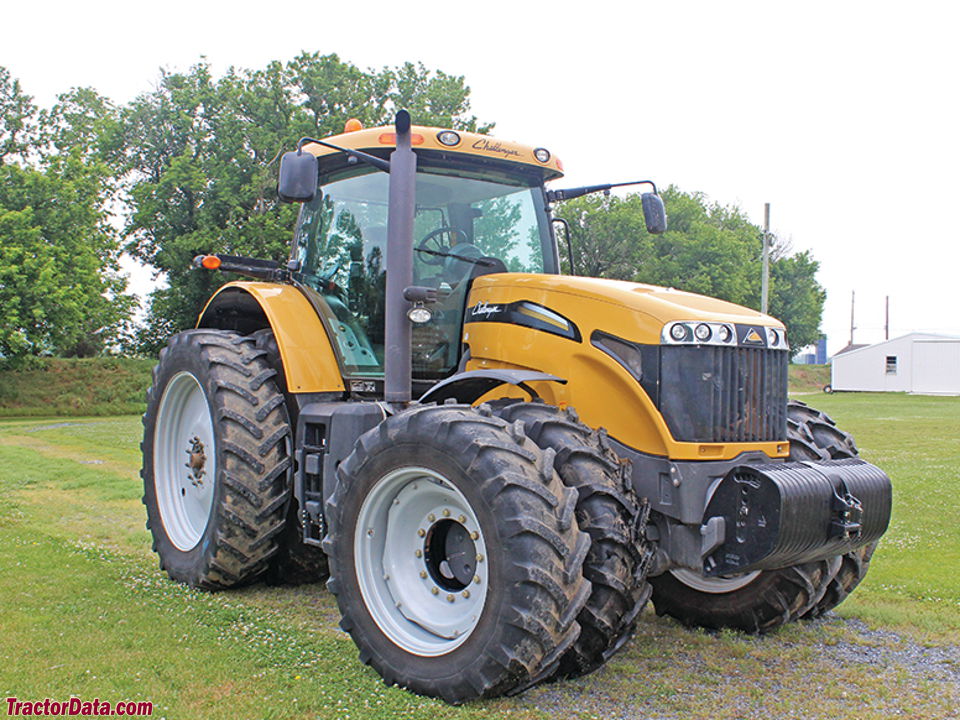

Challenger MT665C tractor photo
2009 - 2010
MT600C Series
Row-Crop tractor
Manufacturer:Challenger (a part of AGCO)
Type:Row-Crop tractor
Factory:Beauvais, France
Original price:$236,000 (2009 )
Challenger MT665C Power
Engine (gross):290 hp
216.3 kW
PTO (claimed):250 hp
186.4 kW
Drawbar (tested):218.5 hp
162.9 kW
PTO (tested):290.3 hp
216.5 kW
power test details ...
Challenger MT665C Engine
AGCO SISU POWER 8.4L 6-cyl diesel
Fuel tank:155.9 gal
590.1 L
 182.3 gal
690.0 L (without SCR)
Exhaust fluid (DEF):7.9 gal
29.9 L
Engine details ...
Chassis:4x4 MFWD 4WD
Final drives:planetary
Differential lock:electro-hydraulic front and rear
Brakes:hydraulic wet disc
Cab:Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control.
Transmission:continuously variable transmission
Transmission details ...
Type:closed center load sensing
Pressure:2,901 psi
200.0 bar
Valves:4 to 6
Pump flow:26.4 gpm
99.9 lpm
Total flow:46.2 gpm
174.9 lpm
Tractor hitch
Rear Type:III
Control:electronic lower-link draft sensing
Rear lift (at ends):26,460 lbs
12002 kg
Rear lift (at 24"/610mm):21,336 lbs
9678 kg
Front lift (at ends):11,020 lbs
4998 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000E/1000 (1.75)
 540E/1000 (1.375)*Optional
Front PTO:independent*Optional
Front RPM:1000 (1.375)
Dimensions & Tires
Wheelbase:122.2 inches
310 cm
Weight:24250 to 25795 pounds
Front tire:480/70R34
Rear tire:520/85R46
Full dimensions and tires ...
MT665C Serial Numbers

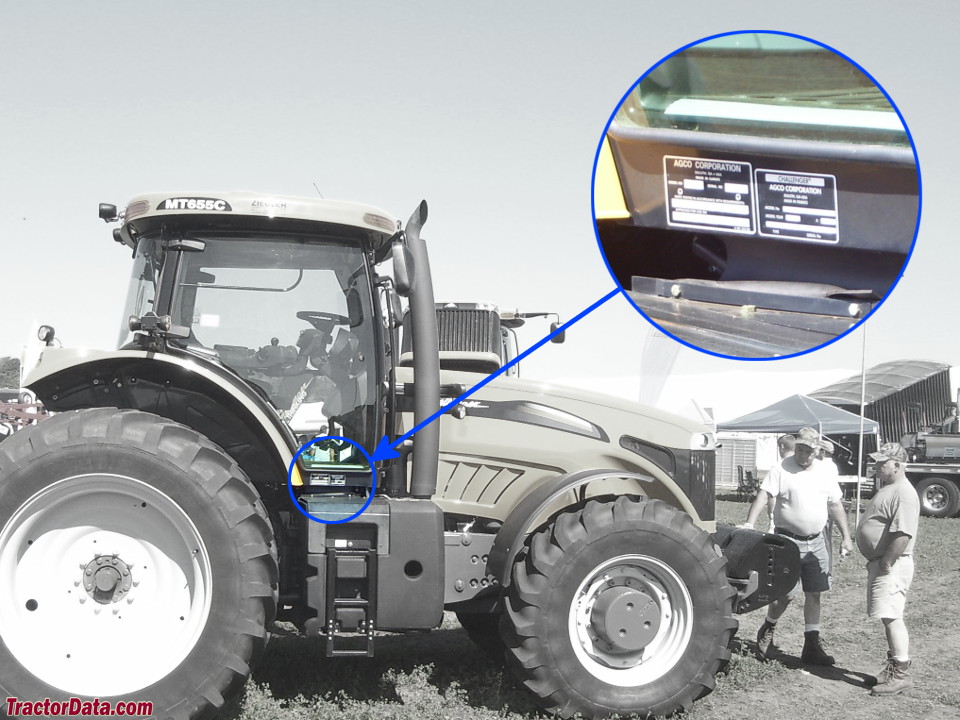

Location:Serial number plate below the tractor cab door on the right side.
photo of MT665C serial number

Charging system:alternator
Charging amps:240*Two 120A alternators.
Battery CCA:775
Battery volts:12
