Tractors > Challenger > MT655C

Challenger MT655C

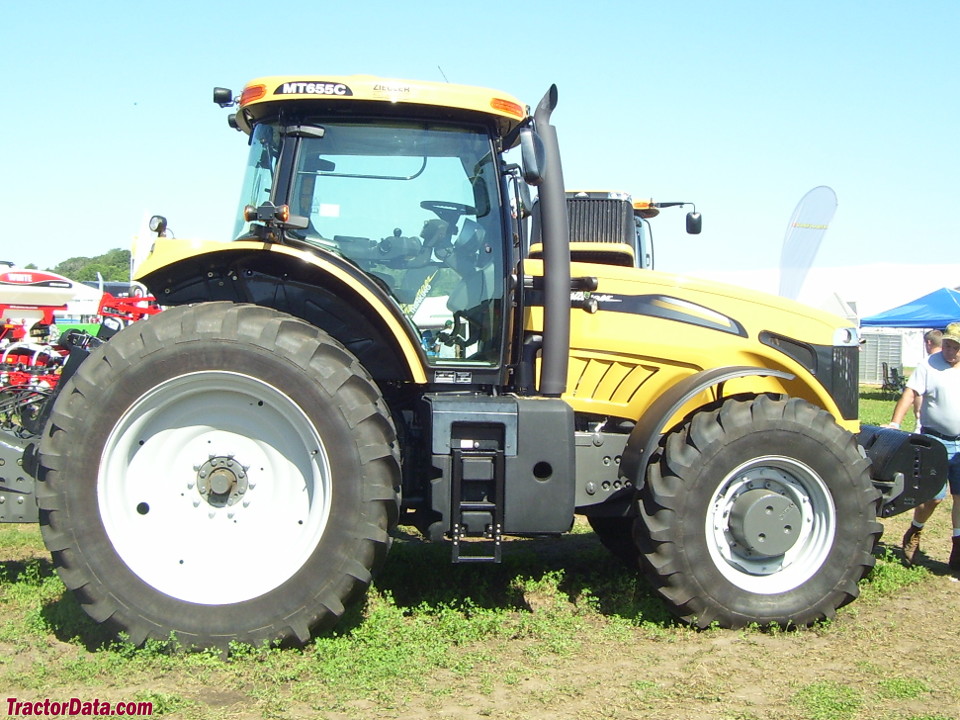

Challenger MT655C tractor photo
2009 - 2010   MT600C Series
Row-Crop tractor
Previous model:Challenger MT655B
Next model:Challenger MT655D
Series next:Challenger MT665C
Series back:Challenger MT645C






Production:

Manufacturer:AGCO
Factory:Beauvais, France


Variants:

Massey Ferguson 8660


Challenger MT655C Engine:

   AGCO SISU POWER 8.4L 6-cyl diesel
full engine details ...


Capacity:

Fuel:155.9 gal [590.1 L]
 182.3 gal [690.0 L] (without SCR)
Exhaust fluid (DEF):7.9 gal [29.9 L]


3-Point Hitch:

Rear Type:III, IV
Rear lift (at ends):26,460 lbs [12002 kg]
Rear lift (at 24"/610mm):21,336 lbs [9678 kg]
Front Hitch:III
Front lift (at ends):11,020 lbs [4998 kg]


Power Take-off (PTO):

Rear PTO:independent electro-hydaulic
Rear RPM:540E/1000
 1000E/1000
Front PTO:optional
Front RPM:1000


Dimensions & Tires:

Wheelbase:122.2 inches [310 cm]
Weight:24250 to 25795 pounds
Front tire:480/70R34
Rear tire:520/85R46
full dimensions and tires ...


Challenger MT655C attachments:

 front-end loader
all MT655C attachments ...


MT655C Serial Numbers:


- Serial numbers unknown -



Challenger MT655C Power:

Engine (gross):265 hp [197.6 kW]
PTO (claimed):225 hp [167.8 kW]
Drawbar (tested):195.1 hp [145.5 kW]
PTO (tested):269.4 hp [200.9 kW]
power test details ...


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control.


Hydraulics:

Type:closed center load sensing
Pressure:2,901 psi [200.0 bar]
Valves:4 to 6
Pump flow:26.4 gpm [99.9 lpm]
Total flow:46.2 gpm [174.9 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:240


Battery:

Volts:12
