Massey Ferguson 8650

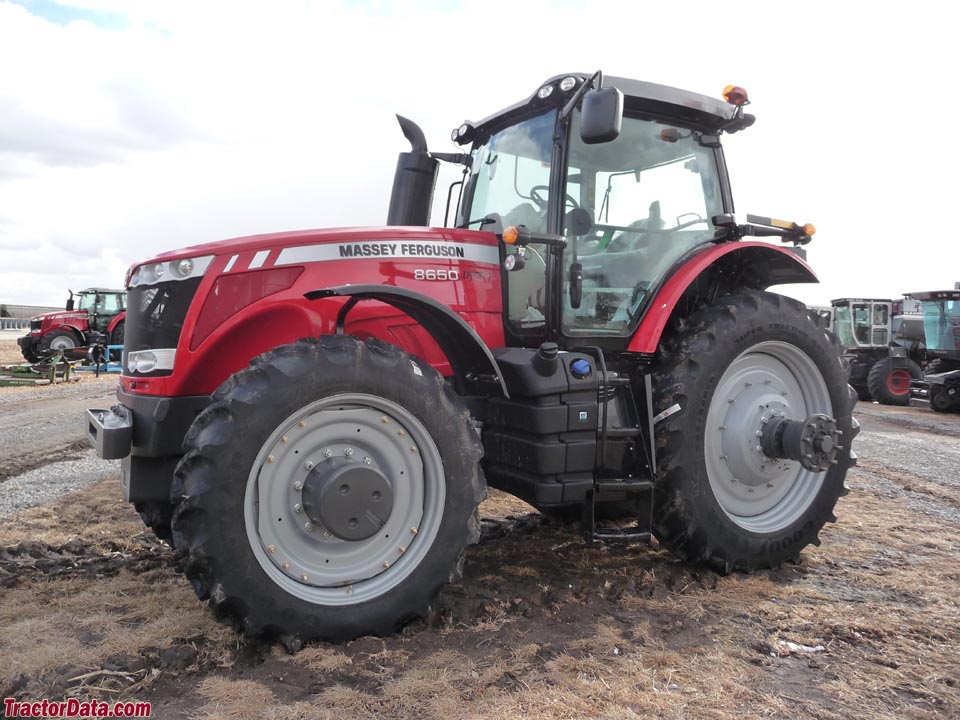

Massey Ferguson 8650 tractor photo
2009 - 2013
Model year
8600 Series
Row-Crop tractor
Series map:
8650
8660
240.0hp
265.0hp
Production
ManufacturerMassey Ferguson (a part of AGCO)
Row-Crop tractor
Built in Beauvais, France
Original price was $185,670 in 2009
Massey Ferguson 8650 Engine
AGCO SISU POWER 8.4L 6-cyl diesel
Fuel tank155.9 gal (SCR)
590.1 L
 182.3 gal (IEGR)
690.0 L
Exhaust fluid (DEF)8 gal
30.3 L
Engine details ...
Massey Ferguson 8650 Transmission
continuously-variable transmission (CVT)
Transmission details ...
Massey Ferguson 8650 Power
Engine240 hp
179.0 kW
PTO (claimed)205 hp
152.9 kW
Drawbar (tested)180.1 hp
134.3 kW
PTO (tested)250.0 hp
186.4 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic
Power steering
Hydraulic wet disc brakes
Trailer brakeshydraulic OptOptional
 pneumatic OptOptional
Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control.
Hydraulics
Typeclosed center load sensing
Pressure2,901 psi
200.0 bar
Valves4 to 6
Pump flow26.4 gpm
99.9 lpm
Total flow46.2 gpm
174.9 lpm
Tractor hitch
Rear TypeIII, IV
Rear lift (at ends)26,460 lbs
12002 kg
Rear lift (at 24"/610mm)21,336 lbs
9678 kg
Front HitchIII
Front lift (at ends)11,020 lbs
4998 kg
DrawbarCat. 3
 Cat. 3 Heavy Duty (optional)
 Cat IV (optional)
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type1000E/1000 (1.75)
 540E/1000 (1.375)OptOptional
Engine RPM1000@1970
 1000E@1605
Front PTOindependent OptOptional
Front PTO Type1000 (1.375)
Dimensions & Tires
Wheelbase122.2 inches
310 cm
Weight24,250 lbs
10999 kg
Front tire420/90R30
Rear tire480/80R46
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps240 *Dual 120A alternators.
Batteries2
Battery CCA775
Battery volts12
References
8650 references literature
MF 8600 Series published in 2009, by Massey Ferguson
