Tractors > AGCO > DT225B

AGCO DT225B - tests

AGCO DT225B tractor photo
2009 - 2010   DT-B Series
Row-Crop tractor
Previous model:AGCO DT220A
Series next:AGCO DT250B
Series back:AGCO DT205B
more AGCO DT225B specifications...






OCED Tractor Test 2497:

Nebraska summary:653

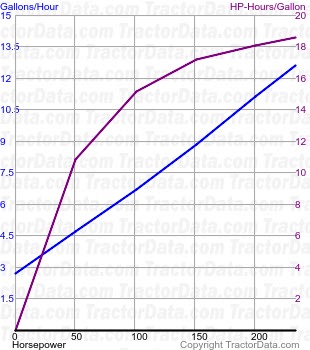

DT225B fuel use from test 653
Test Date:October 2008 - November 2008,
Type:SCR diesel CVT 4WD
PTO power (max):266.3 hp [198.6 kW]
PTO fuel use (max):13.2 gal/hour [50.0 l/hour]
PTO power (rated engine speed):234.0 hp [174.5 kW]
PTO fuel use (engine speed):12.6 gal/hour [47.7 l/hour]
PTO power (rated PTO speed):256.9 hp [191.6 kW]
PTO fuel use (PTO speed):13.3 gal/hour [50.3 l/hour]
Drawbar power (max):194.9 hp [145.3 kW]
Drawbar fuel use (max):12.3 gal/hour [46.6 l/hour]
Drawbar pull (max):30,190 lbs [13694 kg]
Max pull gear:3.9 KPH
Test report:PDF file


OCED Tractor Test 2560:

Nebraska summary:748

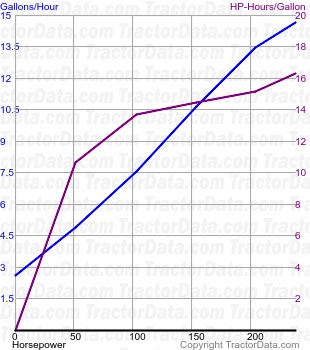

DT225B fuel use from test 748
Test Date:October 2009 - March 2010,
Type:EGR diesel CVT 4WD
PTO power (max):269.4 hp [200.9 kW]
PTO fuel use (max):14.8 gal/hour [56.0 l/hour]
PTO power (rated engine speed):238.0 hp [177.5 kW]
PTO fuel use (engine speed):14.6 gal/hour [55.3 l/hour]
PTO power (rated PTO speed):256.1 hp [191.0 kW]
PTO fuel use (PTO speed):14.8 gal/hour [56.0 l/hour]
Drawbar power (max):195.1 hp [145.5 kW]
Drawbar fuel use (max):14.7 gal/hour [55.6 l/hour]
Drawbar pull (max):28,325 lbs [12848 kg]
Max pull gear:4.0 KPH
Test report:PDF file
