Tractors > White > Workhorse 145

White Workhorse 145



White Workhorse 145 tractor photo
1990 - 1992
Workhorse Series
Row-Crop tractor
Series map:
125
145
170
132.4hp*
153.9hp*
177.8hp*
*Estimated engine power for comparison only.
Production
ManufacturerWhite
Row-Crop tractor
Original price was $60,000 in 1992
White 145 Engine
CDC-Cummins 5.9L 6-cyl diesel
Fuel tank64 gal
242.2 L
Engine details ...
White 145 Transmission
18-speed partial power shift
Transmission details ...
White 145 Power
Drawbar (tested)122.85 hp
91.6 kW
PTO (tested)138.53 hp
103.3 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockhydraulic rear
Power steering
Independent hydraulic wet disc brakes
Cab standard with air-conditioning.
Photos

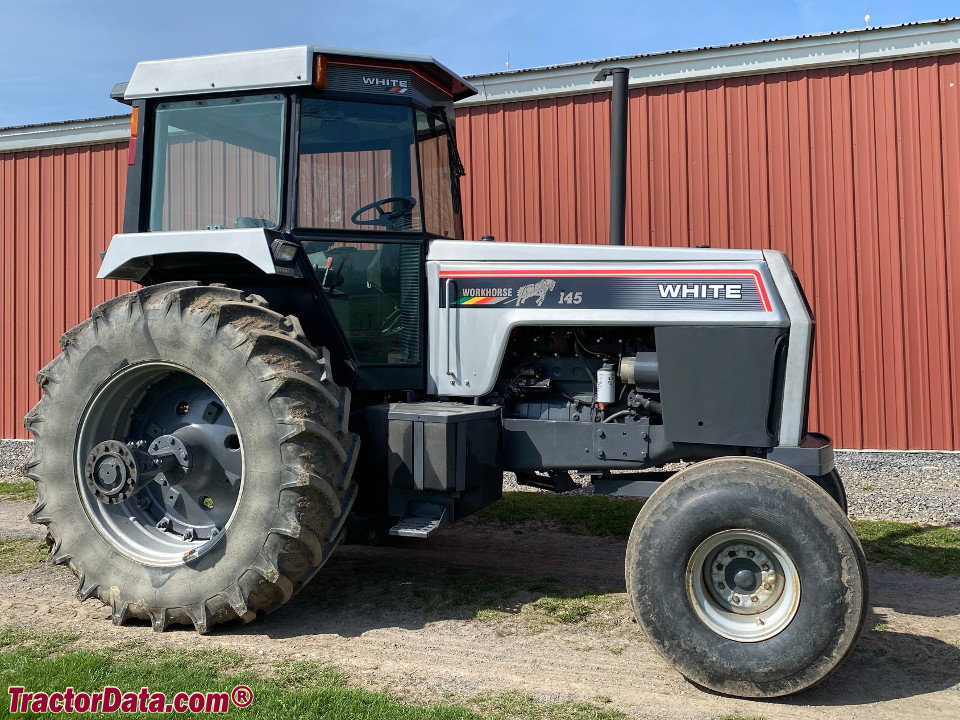

White Workhorse 145, right side.
White 145 photos...
Hydraulics
Typeclosed center
Pressure2250 psi
155.1 bar
Rear valves2 or 3
Pump flow22 gpm
83.3 lpm
Tractor hitch
Rear TypeIII/II
Controllower-link draft sensing
Rear lift7212 lbs
3271 kg
 8544 lbsOptOptional
3875 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540/1000
Dimensions & Tires
2WD Wheelbase111.5 inches
283 cm
4WD Wheelbase99 inches
251 cm
Weight12250 to 14665 pounds
Front tire11.00-16
Rear tire18.4R-38
Full dimensions and tires ...
145 Serial Numbers
Location:Left rear side of frame
1991404826
1992501001

FAQ: How to read a serial number table.
Electrical
Groundnegative
References
Workhorse 145 references literature
Workhorse Tractors published in 1990, by White
Workhorse Tractors published in 1990, by White
