Tractors > Ferguson > FE-35

Ferguson FE-35

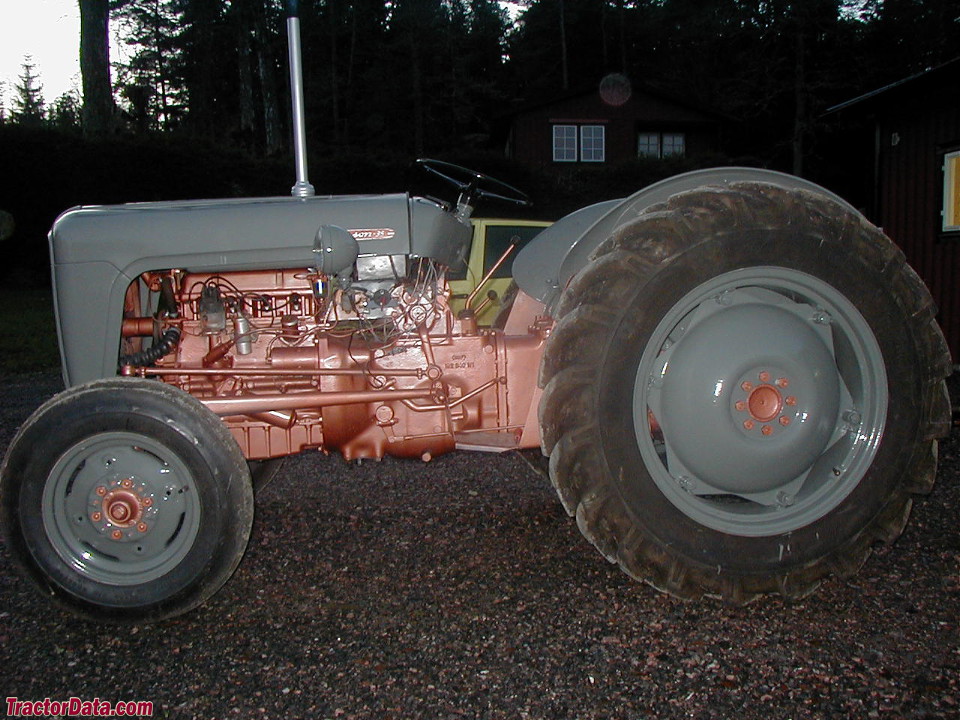

Ferguson FE-35 tractor photo
1956 - 1958
Utility tractor
Previous model:Ferguson TEA-20
Next model:Massey Ferguson 35





The Ferguson FE-35 was in production as the Ferguson and Massey-Harris companies merged into Massey Ferguson. The tractor began production in grey-and-gold paint with Ferguson badging. The paint changed to red and grey in late 1957 but the Ferguson decals remained. At some point between 1958 and 1960 the Ferguson name disappeared in favor of Massey Ferguson.


Production:

Manufacturer:Massey Ferguson
Factory:Coventry, England


Ferguson FE-35 Engines:

   Standard 2.2L 4-cyl gasoline
   Standard 2.3L 4-cyl diesel
full engine details ...


Capacity:



3-Point Hitch:

Rear Type:I


Power Take-off (PTO):

Rear PTO:transmission (special)
 live (deluxe)
Rear RPM:540


Dimensions & Tires:

Weight:3,093 lbs [1402 kg]
full dimensions and tires ...


FE-35 Serial Numbers:

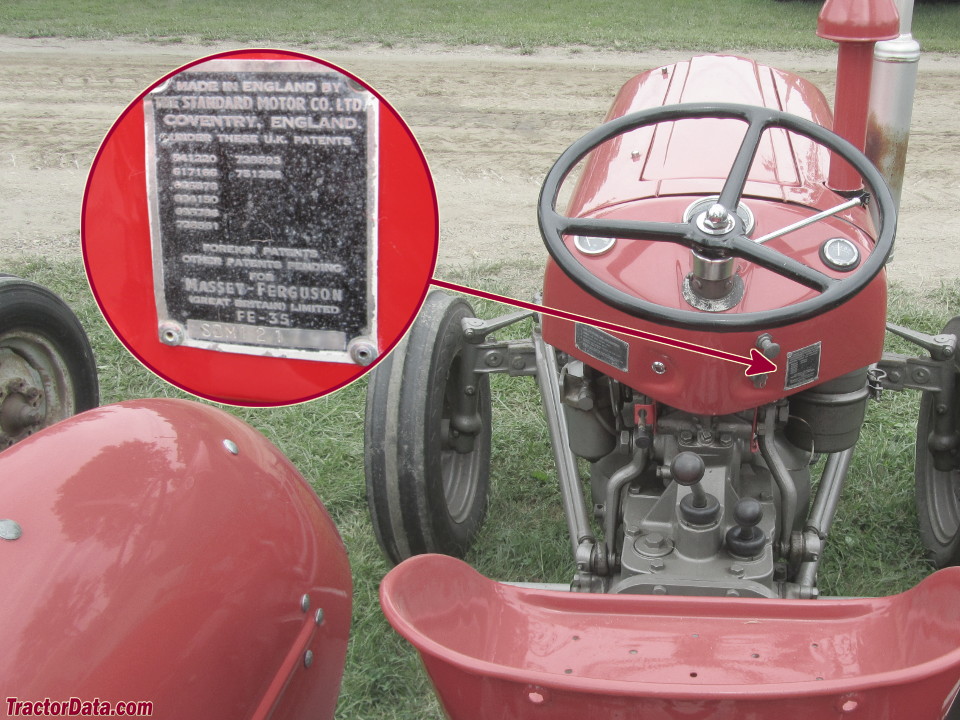

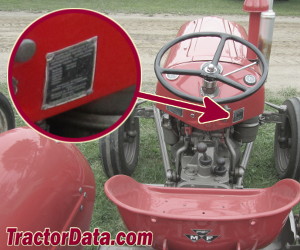

Location:Serial number plate on dashboard.
1956: 1001
1957: 9226
1958: 79553
1959: 125068
1960: 171471
Final: 220613

how to read serial numbers...



Ferguson FE-35 Power:

Engine:34 hp [25.4 kW]


Mechanical:

Chassis:4x2 2WD
Steering:manual
Brakes:differential shoe
Cab:Open operator station.


Battery:

Number:1 (gas)
 2 (diesel)
Volts:6
