Massey Ferguson 178

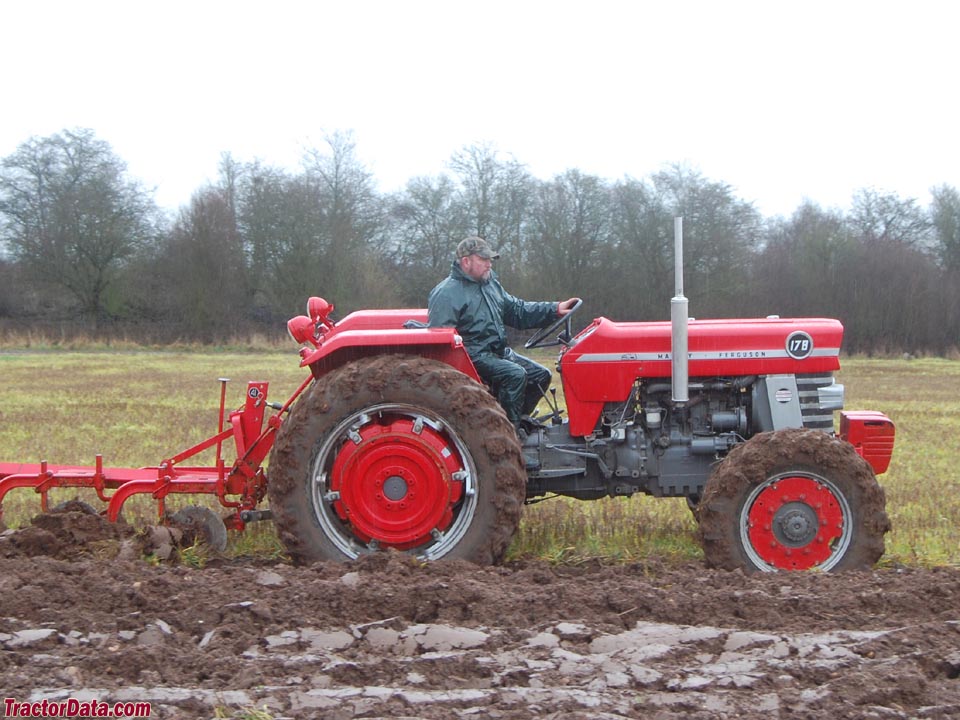

Massey Ferguson 178 tractor photo
1968 - 1971
Series:178
185
Production
Manufacturer:Massey Ferguson
Massey Ferguson 178 Power
Engine:73 hp
54.4 kW
PTO (claimed):62 hp
46.2 kW
Massey Ferguson 178 Engine
Perkins 4.1L 4-cyl diesel
Fuel tank:21.7 gal
82.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power assist
Brakes:dry disc
Cab:Open operator station.
Transmissions:12-speed partial powershift
 6-speed unsynchronized
 8-speed unsynchronized
Transmission details ...
Hydraulics
Valves:1 or 2
Pump flow:3.1 gpm
11.7 lpm (gear)
 8.1 gpm
30.7 lpm (Multi Power)
Tractor hitch
Rear Type:II
Rear lift:3,900 lbs
1769 kg
Power Take-off (PTO)
Rear RPM:540/ground
Dimensions & Tires
Wheelbase:84 inches
213 cm
Weight:6878 to 7760 pounds
Front tire:7.5x16
Rear tire:12x36
Full dimensions and tires ...
178 Serial Numbers
1968:722680
1969:732158
1970:740301
1971:747283

how to read serial numbers...
