CaseIH Magnum 190 - tests

CaseIH Magnum 190 tractor photo
2009 - 2013   Magnum Series
Model years
Row-Crop tractor
Series next:CaseIH Magnum 210
Series back:CaseIH Magnum 180
more CaseIH Magnum 190 specifications...






OCED Tractor Test 2425:

Nebraska summary:622A

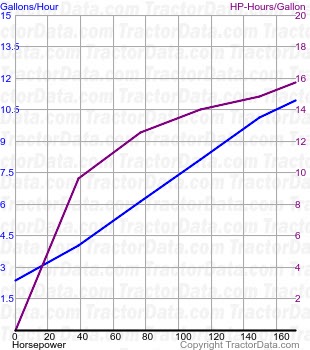

Magnum 190 fuel use from test 622A
Test Date:May 2007 - June 2007,
Type:Diesel 19-speed 4WD
PTO power (max):189.4 hp [141.2 kW]
PTO fuel use (max):10.9 gal/hour [41.3 l/hour]
PTO power (rated engine speed):171.2 hp [127.7 kW]
PTO fuel use (engine speed):10.9 gal/hour [41.3 l/hour]
PTO power (rated PTO speed):178.4 hp [133.0 kW]
PTO fuel use (PTO speed):11.0 gal/hour [41.6 l/hour]
Test report:PDF file
