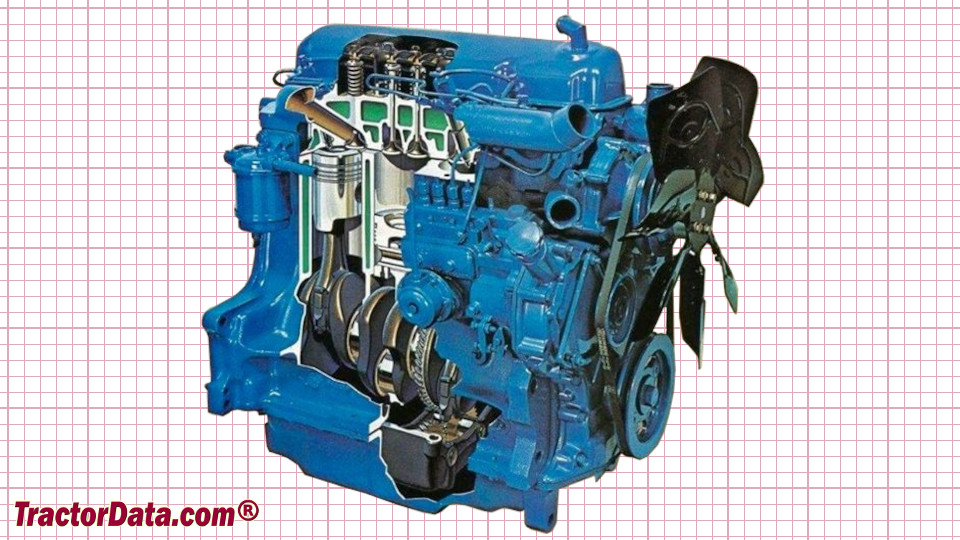

    Ford 6610 - engine

    Ford 6610 tractor photo
    1982 - 1993   10 Series
    Utility tractor
    Previous model:Ford 6600
    Next model:Ford-New Holland 6610
    Ford 6640
    Series next:Ford 6710
    Series back:Ford 5610
    more Ford 6610 specifications...






    Engine Detail:

     Ford
     diesel
     4-cylinder
     liquid-cooled
     268 ci [4.4 L]
    Bore/Stroke:4.4x4.4 inches [112 x 112 mm]
    Power:78.5 hp [58.5 kW]
    Power (gross):82 hp [61.1 kW]
    Air cleaner:dual paper elements
    Compression:16.3:1
    Rated RPM:2100
    Torque:219 lb-ft [297.0 Nm]
    Starter volts:12
    Oil capacity:9 qts [8.5 L]
    Coolant capacity:13.5 qts [12.8 L]
