| | 1983 - 1989 |
| 10 Utility Series | | Utility tractor |
|
Series map:
2910
3910
4610
40.5hp
47.5hp
60.0hp
| Transmission options |
| 8-speed |
| 8-speed synchromesh |
| 6-speed mechanical shuttle |

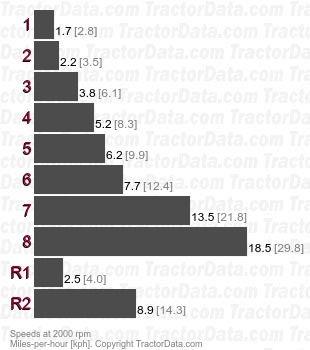

| Transmission |
| Transmission | Dual Range
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 330mm dry disc
|
| Oil capacity | 12.7 qts
12.0 L
|

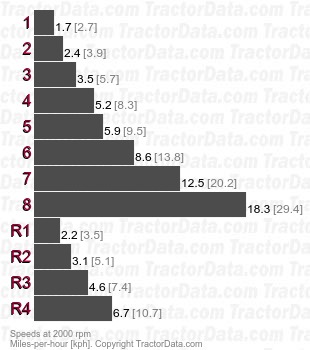

| Speeds |
| With 13.6x28 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Clutch | dry disc
|
| Oil capacity | 9.9 qts
9.4 L
|
| Speeds |
| With 13.6x28 rear tires. |
|

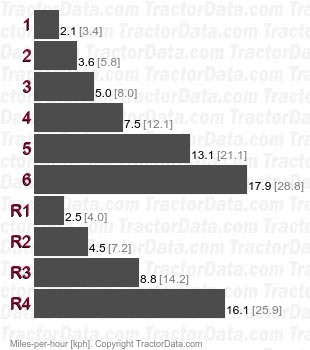

| Transmission |
| Type | mechanical shuttle
|
| Gears | 6 forward and 4 reverse
|
| Six-speed transmission became available on the 3910 II in 1986. |
| Speeds |
|
