Tractors > Kubota > B2620

Kubota B2620

Kubota B2620 tractor photo
2008 -    B2x20 Series
Compact Utility tractor
Previous model:Kubota B7610
Series next:Kubota B2920
Series back:Kubota B2320






Production:

Manufacturer:Kubota
Original price (USD):$13,888 (2011)


Kubota B2620 Engine:

   Kubota 1.1L 3-cyl diesel
full engine details ...


Capacity:

Fuel:6.6 gal [25.0 L]
Hydraulic system:4 gal [15.1 L]


3-Point Hitch:

Rear Type:1
Rear lift (at ends):1,356 lbs [615 kg]
Rear lift (at 24"/610mm):1,058 lbs [479 kg]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540/960 (1.375)
Engine RPM:540@2773
960@2722
Mid PTO:optional
Mid RPM:2500
Engine RPM:2500@2750


Dimensions & Tires:

Wheelbase:61.5 inches [156 cm]
Weight:1,554 lbs [704 kg]
Front tire:7-12
Rear tire:11.2-16
full dimensions and tires ...


Kubota B2620 attachments:

 mowing deck
 front-end loader
 backhoe
all B2620 attachments ...


B2620 Serial Numbers:

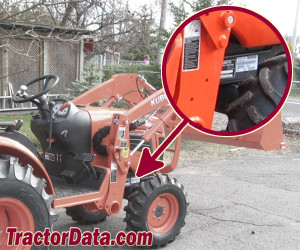

Location:Serial number plate on the right side of the B2620 frame, above the front axle.

- Serial numbers unknown -



Kubota B2620 Power:

Engine (gross):26 hp [19.4 kW]
PTO (claimed):19 hp [14.2 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Sunshade optional.


Hydraulics:

Type:open center
Capacity:4 gal [15.1 L]
Valves:1 or 2
Pump flow:4.7 gpm [17.8 lpm]
Total flow:8.3 gpm [31.4 lpm]
Steering flow:3.6 gpm [13.6 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:14.5
 40 (optional)


Battery:

Number:1
Volts:12


Page information:
