Kubota BX2660


Kubota BX2660 tractor photo
2008 - 2013
BX60 Series
Compact Utility tractor
Series map:
BX2360
BX2660
23.0hp
25.5hp
Production
ManufacturerKubota
Compact Utility tractor
Original price$11,736 (2009 )
$12,136 (2011 )
$12,484 (2013 )
Kubota BX2660 Engine
Kubota 1.0L 3-cyl diesel
Engine details ...
Kubota BX2660 Power
Engine (gross)25.5 hp
19.0 kW
PTO (claimed)19.5 hp
14.5 kW
Mechanical
Four-wheel drive
Differential lockrear standard
Steeringhydrostatic power
Wet disc brakes
Two-post fixed ROPS. Canopy optional.
Capacity
Fuel6.6 gal
25.0 L
Hydraulic system3.1 gal
11.7 L
Hydraulics
Typeopen center
Capacity3.1 gal
11.7 L
Total flow6.3 gpm
23.8 lpm
Tractor hitch
Rear Type1
Rear lift (at ends)1,210 lbs
548 kg
Rear lift (at 24"/610mm)670 lbs
303 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540
Engine RPM540@3120
Mid PTOindependent
Mid RPM2500
Engine RPM2500@3043
Dimensions & Tires
Wheelbase55.1 inches
139 cm
Weight1,389 lbs
630 kg
Front tire18x8.5-10
Rear tire26x12-12
Full dimensions and tires ...
Kubota BX2660 attachments
54" 209-mount mower deck
60" mid-mount mower deck
front-end loader
Attachment details ...

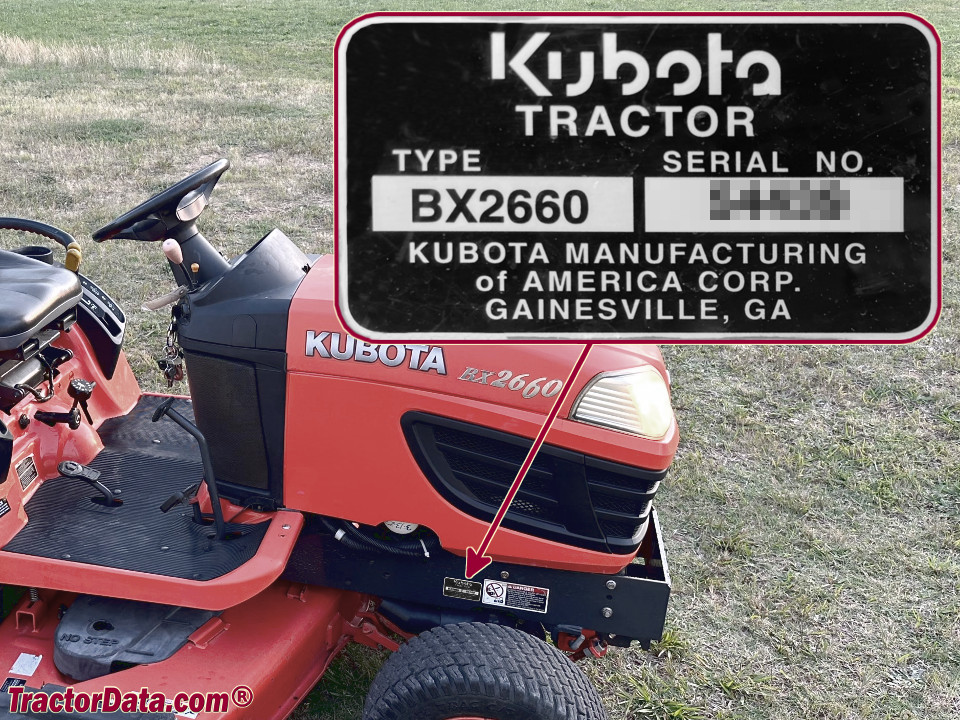

BX2660 Serial Number Location
Kubota BX2660 serial number location
Serial number plate on the left side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery CCA535
Battery volts12
