Long 360

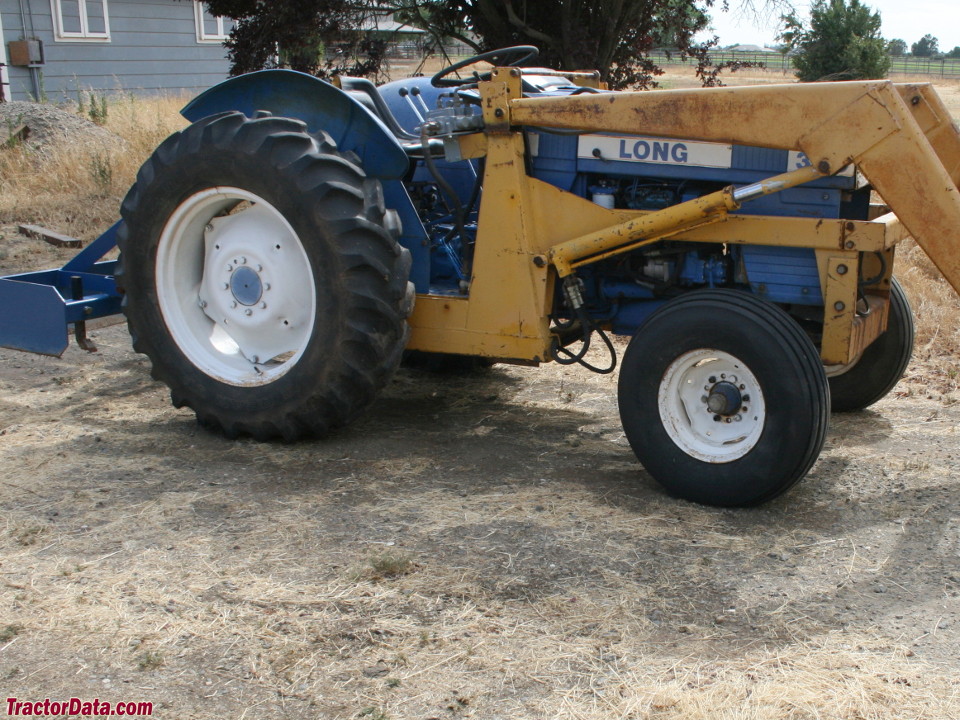

Long 360 tractor photo
1977 - 1991
Utility tractor
UTB/Universal built
Series map:
360
38.0hp
Production
DistributorLong
ManufacturerUTB/Universal
Utility tractor
Built in Brasov, Romania
The Long 360 carried model number 1563.
Long 360 Engine
Uzina 2.3L 3-cyl diesel
Engine details ...
Long 360 Transmissions
6-speed partially synchronized
8-speed
Transmission details ...
Long 360 Power
Engine38 hp
28.3 kW
Drawbar (claimed)30 hp
22.4 kW
PTO (claimed)35 hp
26.1 kW
Drawbar (tested)31.06 hp
23.2 kW
PTO (tested)36.16 hp
27.0 kW
Performance test details ...
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Steeringmanual
 power optional
Independent contracting band brakes
Open operator station.
Capacity
Fuel14.25 gal
53.9 L
Hydraulic system4.5 gal
17.0 L
Hydraulics
Typeopen center
Capacity4.5 gal
17.0 L
Valves1
Total flow5.75 gpm
21.8 lpm
Tractor hitch
Rear TypeII/I
Rear lift2650 lbs
1202 kg
Power Take-off (PTO)
Rear PTOlive *Two-stage clutch
Rear RPM540
Engine RPM540@1970
Dimensions & Tires
Wheelbase75 inches
190 cm
Weight3750 to 4480 pounds
Front tire7.50-16
Rear tire14.9-28
Full dimensions and tires ...
360 Serial Numbers

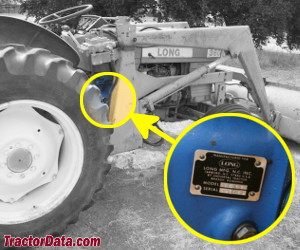

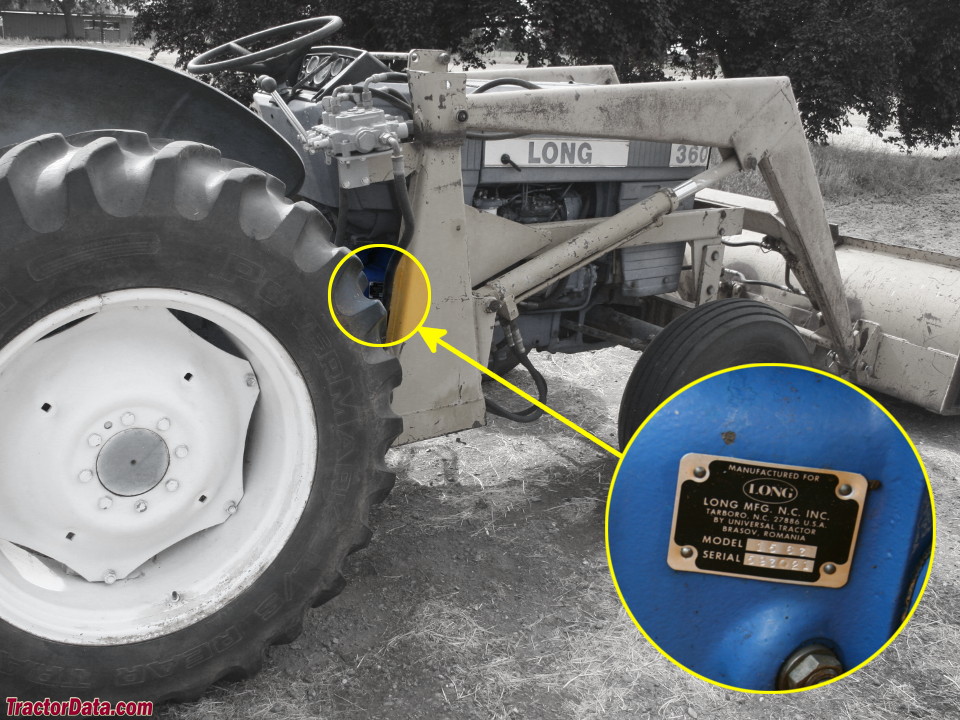

360 Serial Location
Long 360 serial number location
Serial number plate on the right side of the tractor, near the brake pedals.
Electrical
Groundnegative
Battery CCA100
 135 OptOptional
Battery volts12
References
360 references literature
360 Diesel Tractor published in 1976, by Long
Loaders published in 1993, by Long
