Long 260
|
|
| Production | |
| Distributor | Long |
| Manufacturer | UTB/Universal |
| Utility tractor | |
| Variants | |
| Universal 260 | similar model |
| Long 260 Engine | |
| UTB/Universal 1.6L 2-cyl diesel | |
 Engine details ... |
| Long 260 Transmission | |
| 6-speed sliding gear/constant mesh | |
 Transmission details ... |
| Long 260 Power | |
| PTO (claimed) | 24 hp 17.9 kW |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| hydrostatic power OptOptional | |
| Mechanical band brakes | |
| Open operator station. Two-post ROPS optional. FOPS canopy optional. | |

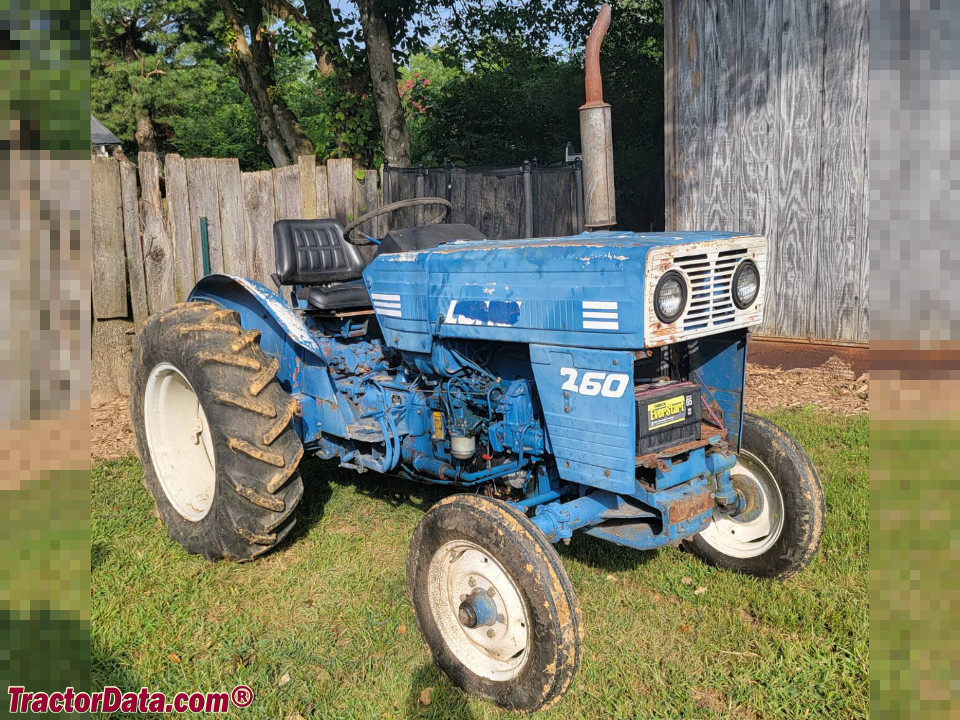

| Photos | |
 | |
 Long 260 photos... | |
| Capacity | |
| Fuel | 14.3 gal 54.1 L |
| Hydraulic system | 4.25 gal 16.1 L |
| 10 galOptOptional 37.9 L | |
| Rear diff. | 1.5 qts 1.4 L |
| Hydraulics | |
| Type | open center |
| Capacity | 4.25 gal 16.1 L |
| 10 galOptOptional 37.9 L | |
| Valves | 0 to 2 |
| Total flow | 5.75 gpm 21.8 lpm |
| Tractor hitch | |
| Rear lift | II/I lbs 0 kg |
| Rear lift (at ends) | 2645 lbs 1199 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear RPM | 540/ground |
| Engine RPM | 540@1970 |
| Dimensions & Tires | |
| Wheelbase | 70.8 inches 179 cm |
| Weight | 3270 lbs 1483 kg |
| Front tire | 5.00-1511.2-28 |
 Full dimensions and tires ... | |
| Long 260 attachments | |
| front-end loader | |
 Attachment details ... |
| 260 Serial Numbers | |
| Location: | A tractor identification plate is located on the right-hand side of the transmission housing. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 30 |
| Batteries | 1 |
| 2 | |
| Battery volts | 12 |
| 6 | |
| Battery Group | BCI 30H (12v) |
| BCI 3EH (6v) | |
| References | |
 | |
| Loaders published in 1993, by Long |
