    John Deere 5095M

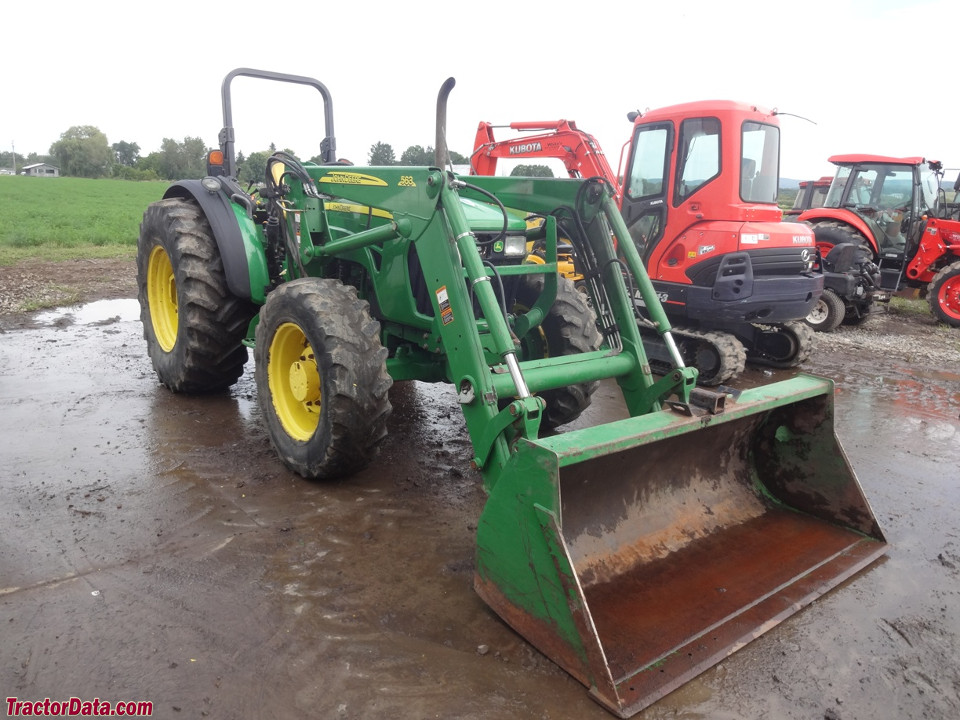

    John Deere 5095M tractor photo
    2008 - 2011   5M Series
    Utility tractor
    Previous model:John Deere 5525
    Next model:John Deere 5100M
    Larger:John Deere 5105M
    Smaller:John Deere 5085M






    Production:

    Manufacturer:John Deere
    Factory:Augusta, Georgia, USA
    Original price (USD):$41,234 (2009 2WD ROPS)
     $57,669 (2009 4WD cab)


    Variants:

    5095MH:high-clearance


    John Deere 5095M Engine:

       John Deere 4.5L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:30.3 gal [114.7 L] (ROPS)
     40.7 gal [154.0 L] (cab)
    Hydraulic system:11.9 gal [45.0 L]
    Front hubs:0.84 qts [0.8 L] (each)
    Front diff.:5.3 qts [5.0 L]


    3-Point Hitch:

    Rear Type:independent electrohyraulic
    Rear lift (at 24"/610mm):3,595 lbs [1630 kg]
     4,498 lbs [2040 kg] (optional)


    Power Take-off (PTO):

    Rear PTO:independent electrochydraulic
    Rear RPMs:540/540E
     540/540E/1000 (optional)


    Dimensions & Tires:

    Wheelbase:85.6 inches [217 cm]
    Weight:6591 to 8150 pounds
    Front tire:11L-15
    Rear tire:480/80R30
    full dimensions and tires ...


    John Deere 5095M attachments:

     front-end loader
    all 5095M attachments ...

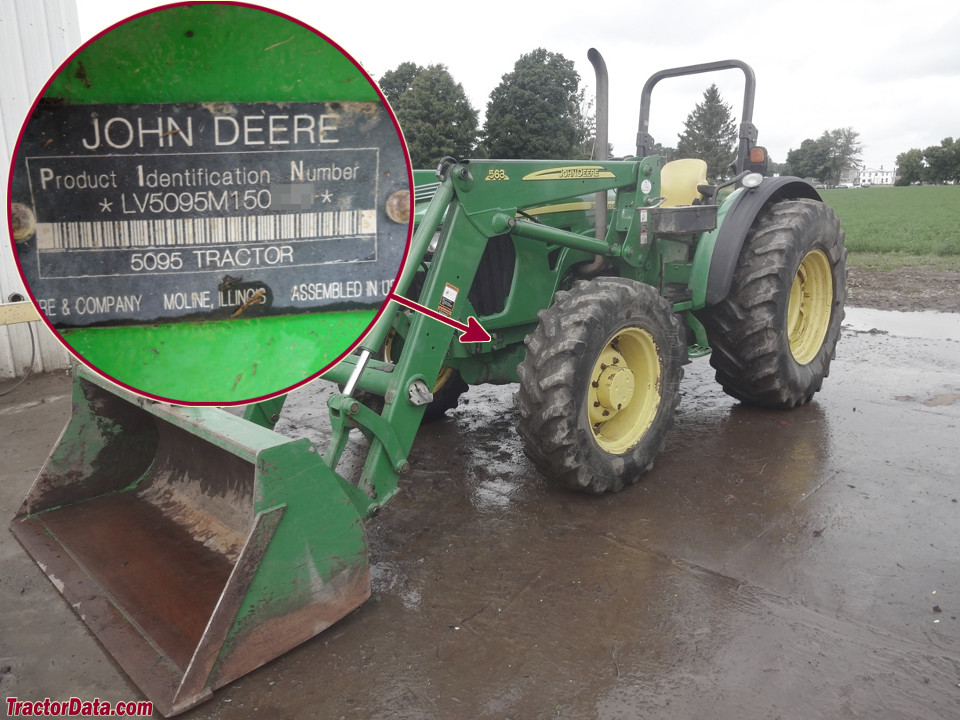

    5095M Serial Numbers:

    Location:Tractor frame on front left side.

    - Serial numbers unknown -



    John Deere 5095M Power:

    Engine (gross):95 hp [70.8 kW]
    PTO (claimed):80 hp [59.7 kW]
    PTO (tested):84.42 hp [63.0 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Final drives:inboard planetary
    Differential lock:shift-on-the-move electro-hydraulic rear differential lock
    Steering:hydrostatic power
    Brakes:hydraulic wet disc
    Cab:Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning.


    Hydraulics:

    Capacity:11.9 gal [45.0 L]
    Pressure:2828 psi [195.0 bar]
    Valves:0, 2 or 3 (rear)
     0, 2 or 3 (mid)
    Pump flow:18.4 gpm [69.6 lpm]
    Total flow:24.7 gpm [93.5 lpm]
    Oil type:
    -10oF [-23oC] : HY-GARD
    -10oF [-23oC] : JDM J20C
    10o↔104oF [-12o↔40oC]   : BIO HY-GARD JDM 20D

    Steering flow:6.3 gpm [23.8 lpm]
    Steering press.:1922 psi [132.5 bar]


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:70 (ROPS)
     90 (cab)
     120 (optional)


    Battery:

    Number:1
    Cold-cranking amps:925
    Volts:12
    Group:31
