John Deere 5085M - transmission

John Deere 5085M tractor photo
2008 - 2017   5M Series
Model years
Utility tractor
Previous model:John Deere 5425
Series next:John Deere 5095M
Series back:John Deere 5075M
more John Deere 5085M specifications...






Transmission:

Transmission:SyncReverser
Type:partially synchronized
Gears:16 forward and reverse
Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges.
Speeds:With 16.9-30 rear tires.

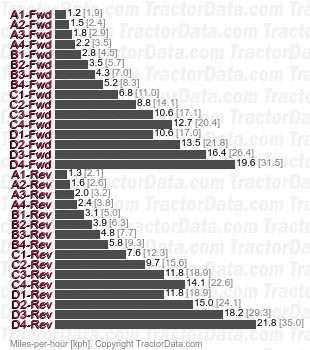

5085M SyncReverser partially synchronized speeds


Transmission:

Transmission:SyncShuttle Plus
Type:partially synchronized
Gears:12 forward and 4 reverse
Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range.
Speeds:With 16.9-30 rear tires.

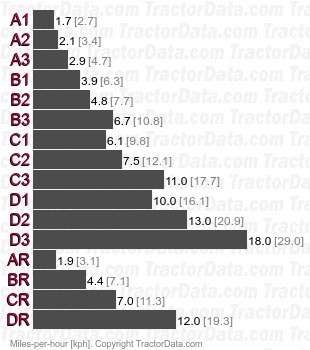

5085M SyncShuttle Plus partially synchronized speeds


Transmission:

Transmission:PowrReverser
Type:partially synchronized with power shuttle
Gears:16 forward and reverse
Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.
Speeds:With 16.9-30 rear tires.
5085M PowrReverser partially synchronized with power shuttle speeds


Transmission:

Transmission:PowrReverser Plus
Gears:32 forward and 16 reverse
Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.
