CaseIH Farmall 60

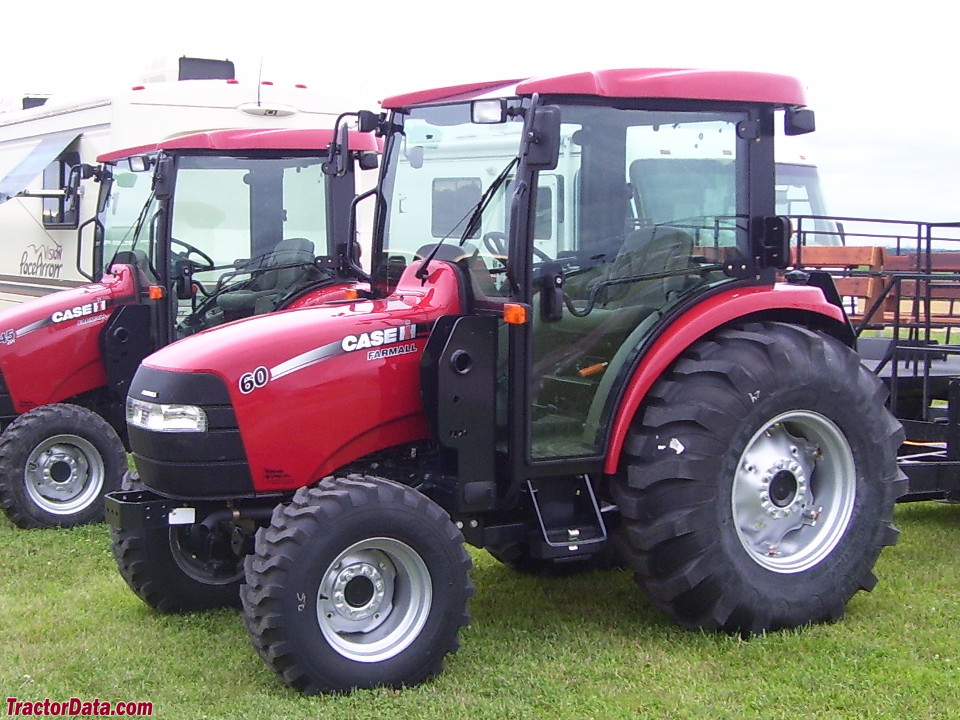

CaseIH Farmall 60 tractor photo
2008 - ????
Farm/Agricultural tractor
Shibaura built
DX60
Series:Farmall 55Farmall 60
Production
Distributor:CaseIH
Manufacturer:Shibaura
Type:Farm/Agricultural tractor
CaseIH Farmall 60 Power
Engine (gross):60 hp
44.7 kW
PTO (claimed):50 hp
37.3 kW (Power Shuttle)
 51 hp
38.0 kW (synchro)
PTO (tested):51.57 hp
38.5 kW
power test details ...
CaseIH Farmall 60 Engine
Shibaura 2.2L 4-cyl diesel
Fuel tank:13.5 gal
51.1 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:ROPS
Transmission:12-speed
Transmission details ...
Hydraulics
Type:open center
Pressure:2489 psi
171.6 bar
Valves:0 to 3
Pump flow:12 gpm
45.4 lpm
Total flow:17.53 gpm
66.4 lpm
Steering flow:5.5 gpm
20.8 lpm
Tractor hitch
Rear Type:1/2
Rear lift (at 24"/610mm):3,465 lbs
1571 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:74.8 inches
189 cm
Weight:4209 to 4238 pounds
Front tire:8x16
Rear tire:14.9x24
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:55
Battery CCA:750
Battery volts:12
