Tractors > CaseIH > Farmall 35

CaseIH Farmall 35

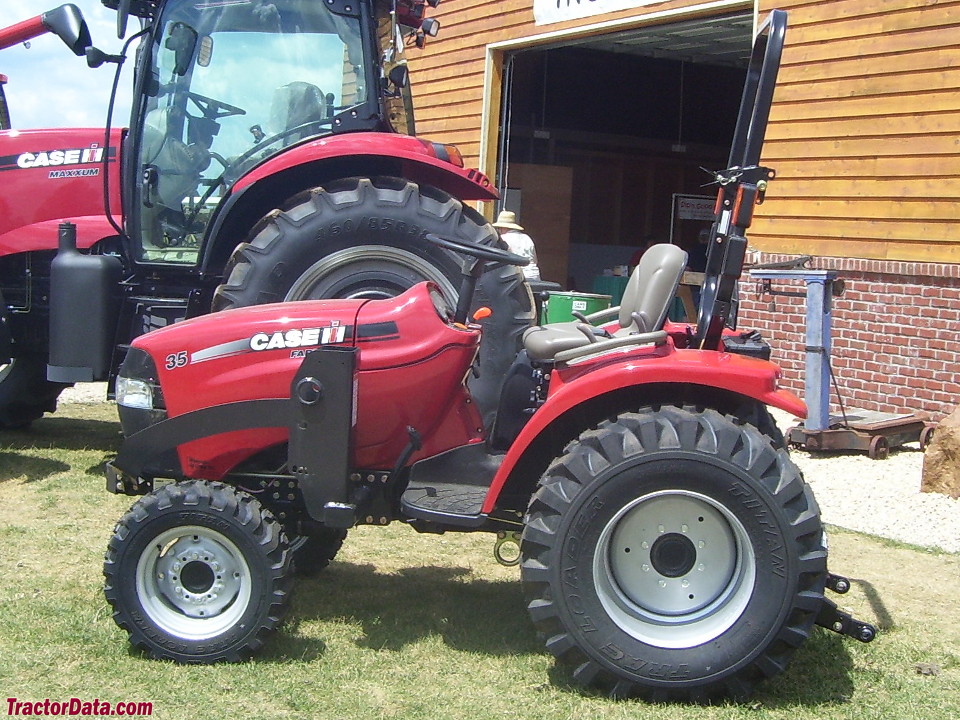

CaseIH Farmall 35 tractor photo
2008 - 2011   Farmall Compact Series
Compact Utility tractor
Previous model:CaseIH DX34
Next model:CaseIH Farmall 35B
Series next:CaseIH Farmall 40
Series back:CaseIH Farmall 31






Production:

Distributor:CaseIH
Manufacturer:Shibaura
Factory:Dublin, Georgia, USA
Original price (USD)
   $24,342 (2011 )


CaseIH Farmall 35 Engine:

   Shibaura 1.7L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.3 gal [27.6 L]


3-Point Hitch:

Rear Type:I
Control:position control
Rear lift (at 24"/610mm):1,635 lbs [741 kg]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540
Mid PTO:standard
Mid RPM:2000


Dimensions & Tires:

Wheelbase:63 inches [160 cm]
Weight:2,526 lbs [1145 kg]
Front tire:7x14
Rear tire:11.2x24
full dimensions and tires ...


CaseIH Farmall 35 attachments:

 front-end loader
all Farmall 35 attachments ...


Farmall 35 Serial Numbers:


- Serial numbers unknown -



CaseIH Farmall 35 Power:

Engine (gross):35 hp [26.1 kW]
PTO (claimed):28.9 hp [21.6 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center
Pump flow:7.2 gpm [27.3 lpm]
Total flow:12.3 gpm [46.6 lpm]
Steering flow:5.1 gpm [19.3 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:40


Battery:

Number:1
Cold-cranking amps:420
Volts:12
