Tractors > CaseIH > Farmall 31

CaseIH Farmall 31

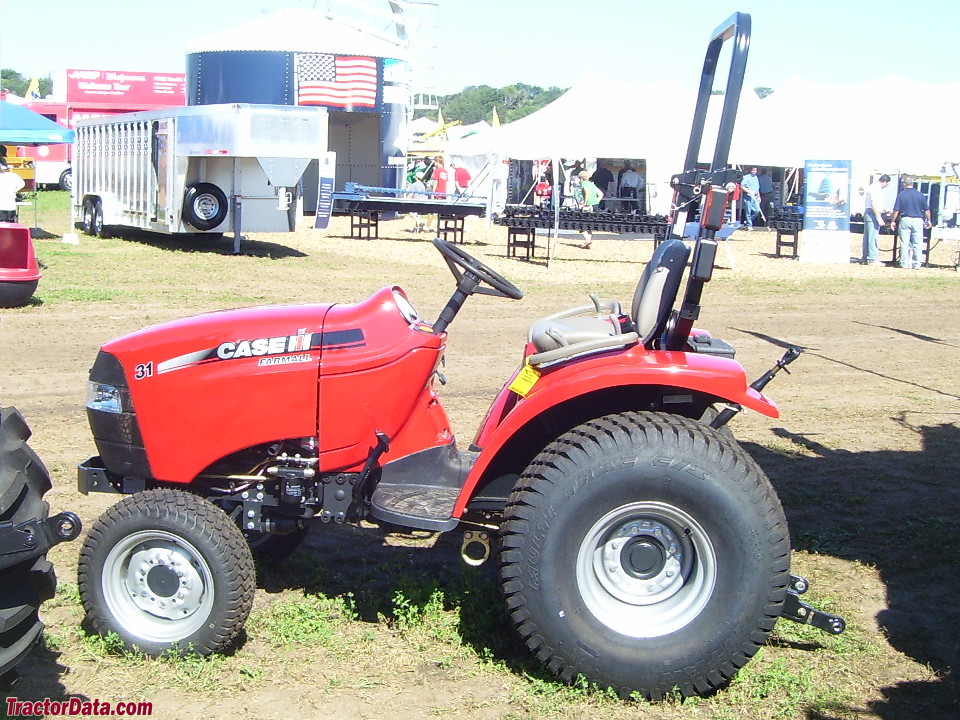

CaseIH Farmall 31 tractor photo
2008 - 2011   Farmall Compact Series
Compact Utility tractor
Previous model:CaseIH DX31
Next model:CaseIH Farmall 30B
Series next:CaseIH Farmall 35






Production:

Distributor:CaseIH
Manufacturer:Shibaura
Factory:Dublin, Georgia, USA
Original price (USD)
   $21,727 (2011 gear ROPS )
   $23,474 (2011 hydro ROPS )


CaseIH Farmall 31 Engine:

   Shibaura 1.5L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.3 gal [27.6 L]


3-Point Hitch:

Rear Type:I
Control:position control
Rear lift (at 24"/610mm):1,635 lbs [741 kg]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540
Mid PTO:optional
Mid RPM:2000


Dimensions & Tires:

Wheelbase:63 inches [160 cm]
Weight:2511 to 2544 pounds
Front tire:7x14
Rear tire:11.2x24
full dimensions and tires ...


CaseIH Farmall 31 attachments:

 front-end loader
all Farmall 31 attachments ...


Farmall 31 Serial Numbers:


- Serial numbers unknown -



CaseIH Farmall 31 Power:

Engine (gross):31 hp [23.1 kW]
PTO (claimed):26.5 hp [19.8 kW] (gear)
 24.9 hp [18.6 kW] (hydro)


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center
Pump flow:7.2 gpm [27.3 lpm]
Total flow:12.3 gpm [46.6 lpm]
Steering flow:5.1 gpm [19.3 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:40


Battery:

Number:1
Cold-cranking amps:420
Volts:12
