Buhler Versatile 435

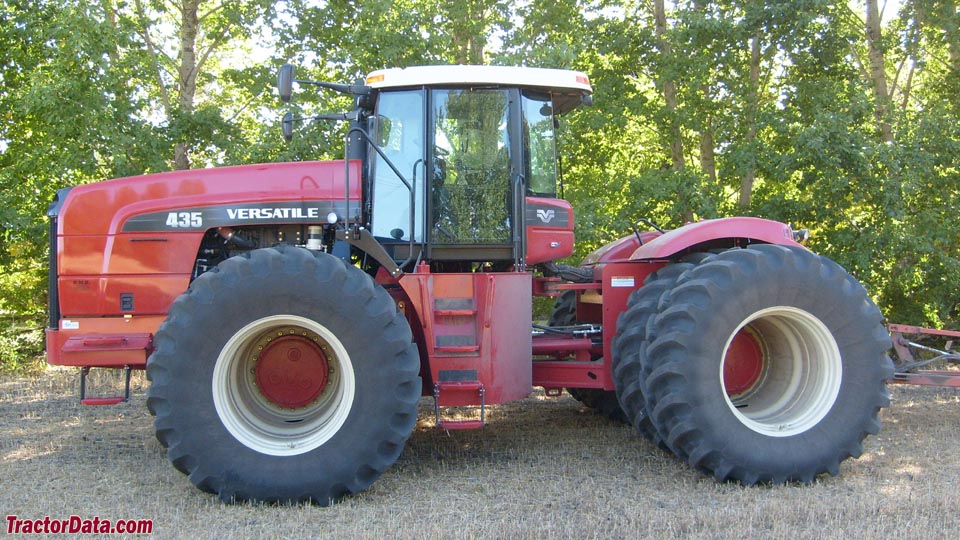

Buhler Versatile 435 tractor photo
2004 - 2008   HHT Series
Four-wheel Drive (4WD) tractor






Production:

Manufacturer:Buhler Versatile
Factory:Winnipeg, Manitoba, Canada


Buhler Versatile 435 Engine:

   Cummins 15.0L 6-cyl diesel
full engine details ...


Capacity:

Fuel:350 gal [1324.8 L]
Hydraulic system:30 gal [113.6 L]


Power Take-off (PTO):

Rear PTO:optional
Rear RPM:1000


Dimensions & Tires:

Wheelbase:154 inches [391 cm]
Weight:42,000 lbs [19051 kg]
full dimensions and tires ...


435 Serial Numbers:


- Serial numbers unknown -



Buhler Versatile 435 Power:

Engine:435 hp [324.4 kW]


Mechanical:

Chassis:4x4 articulated 4WD
Steering:hydrostatic power
Brakes:dual dry caliper
Cab:Cab standard with heat and A/C.


Hydraulics:

Type:closed center load sensing
Capacity:30 gal [113.6 L]
Pressure:2900 psi [200.0 bar]
Valves:4 to 8
Total flow:55 gpm [208.2 lpm]
 80 gpm [302.8 lpm] (optional HydraFlow)


Electrical:

Ground:negative
Charging system:alternator
Charging amps:160


Battery:

Number:3
Cold-cranking amps:950
Volts:12
