Holder AG35 Cultitrac
| Production |
| Manufacturer | Holder
|
| Built in Metzingen, Germany |
| Holder AG35 Power |
| Engine (net) | 30 hp
22.4 kW
|
| Engine | 34 hp
25.4 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical front and rear
|
| Steering | hydraulic
|
| Drum brakes |
| Open operator station. |
| Hydraulics |
| Type | open center
|
| Pump flow | 4.2 gpm
15.9 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 3080 lbs
1397 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2110
|
| Belt Pulley |
| Diameter | 8.3 inches
21 cm
|
| Width | 4.7 inches
11 cm
|
| RPM | 1480
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| References |
 |

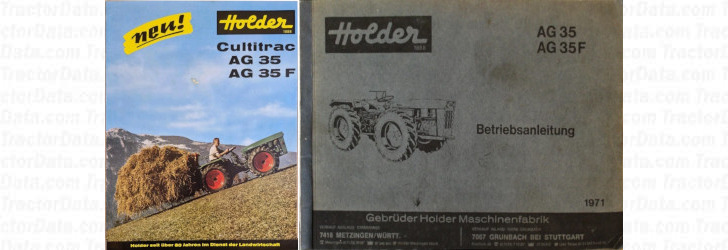

| New! Cultitrac AG 35 published in 1968, by Holder |
| Operating Instructions AG 35 published in 1971, by Holder |
| Page information |
 |
| Copyright 2026 TractorData.com® |
| Email me: Peter@TractorData.com |
| TractorData is a family-owned small business located in Minnesota. I have been researching tractor history and providing specifications for free since 1999. |
| Peter Easterlund - owner/author |
| This machine's data modified on July 6, 2026 |
