New Holland T1520

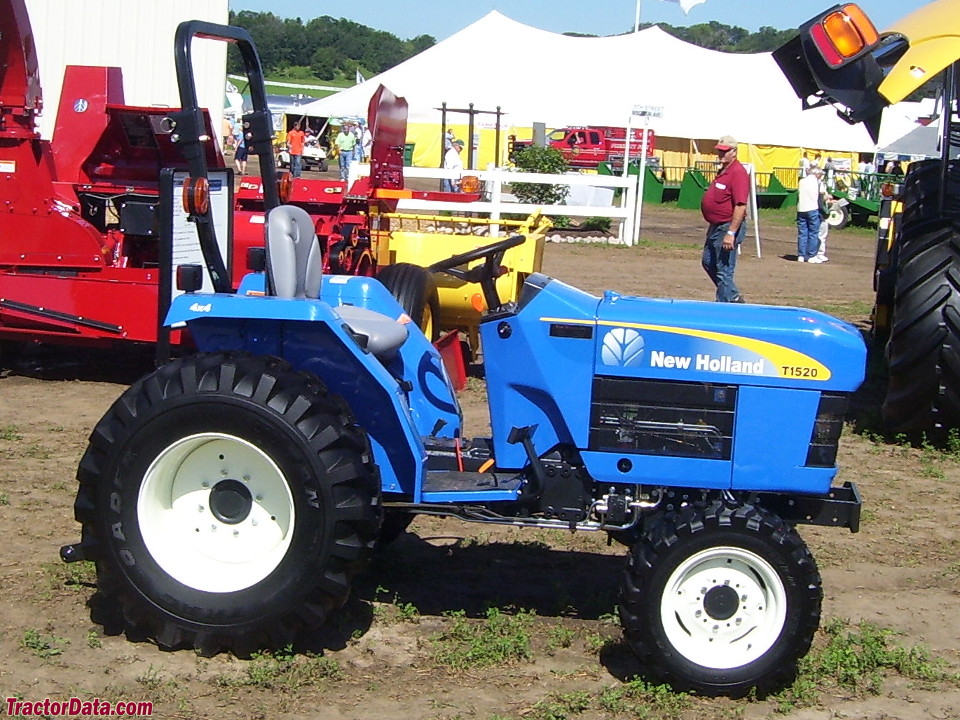

New Holland T1520 tractor photo
2008 -    T1500 Series
Compact Utility tractor
Series next:New Holland T1530
Series back:New Holland T1510






Production:

Manufacturer:New Holland


New Holland T1520 Engine:

   Shibaura 1.7L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.1 gal [26.9 L]


3-Point Hitch:

Rear Type:I
Rear lift (at 24"/610mm):1,635 lbs [741 kg]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540
Mid PTO:live
Mid RPM:2000


Dimensions & Tires:

Wheelbase:63 inches [160 cm]
Weight:2,400 lbs [1088 kg]
Front tire:7.4x14
Rear tire:11.2x24
full dimensions and tires ...


T1520 Serial Numbers:


- Serial numbers unknown -



New Holland T1520 Power:

Engine (gross):35 hp [26.1 kW]
PTO (claimed):29.5 hp [22.0 kW] (gear)
 28 hp [20.9 kW] (hydro)


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center
Pump flow:6.2 gpm [23.5 lpm]
Steering flow:3.8 gpm [14.4 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:40


Battery:

Number:1
Cold-cranking amps:420
Volts:12
