John Deere 3420

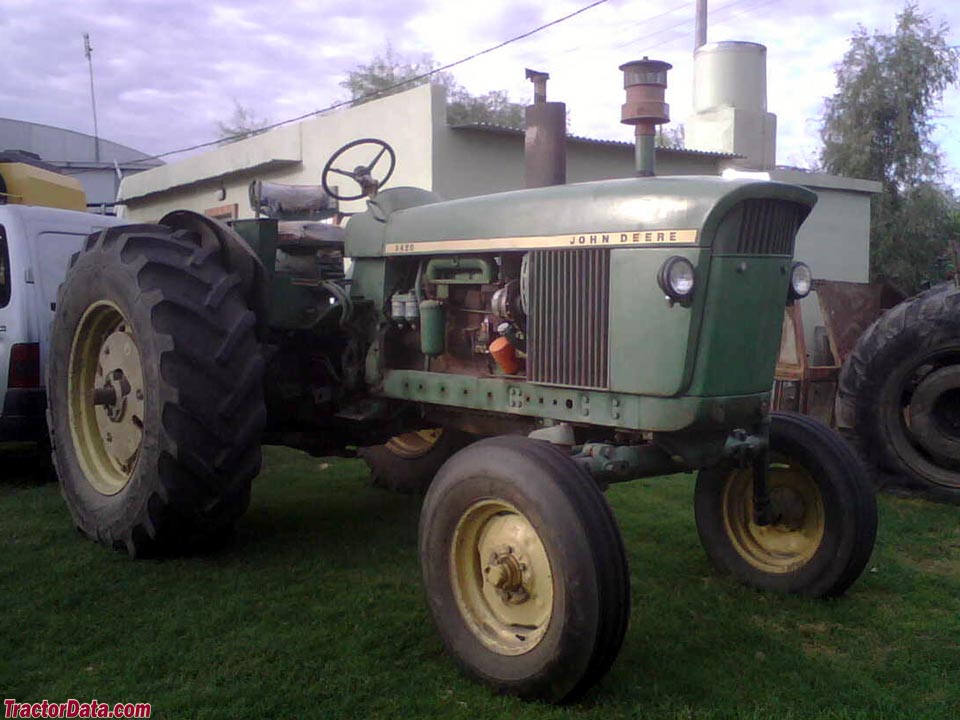

John Deere 3420 tractor photo
1970 - 1975
Row-Crop tractor
Series:242034204420
Production
Manufacturer:John Deere
Type:Row-Crop tractor
Factory:Rosario, Argentina
John Deere 3420 Power
Engine:77 hp
57.4 kW
John Deere 3420 Engine
John Deere 5.0L 6-cyl diesel
Fuel tank:34.1 gal
129.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
Final drives:planetary
Steering:power
Brakes:hydraulic wet disc
Cab:Open operator station.
Transmission:8-speed
Transmission details ...
Hydraulics
Type:closed center
Tractor hitch
Rear Type:II
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:100.4 inches
255 cm
Weight:7668 lbs
3478 kg
Front tire:6.00x16
Rear tire:18.4x34
Full dimensions and tires ...
3420 Serial Numbers
Location:Serial number plate below the steering column.
Electrical
Charging system:alternator
Charging amps:28
Batteries:2
Battery volts:6
