| | 2007 - 2011 |
| MT500B Series | | Row-Crop tractor |
|
| Transmissions overview |
| 24-speed partial power shift |
| continuously variable transmission |
| Transmission |
| Transmission | AutoPower VI
|
| Type | partial power shift
|
| Gears | 24 forward and reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 74 qts
70.0 L
|
| Four ranges with six power shifts each. |
| Transmission |
| Transmission | TechStar CVT
|
| Type | continuously variable transmission
|
| Gears | infinite forward and reverse
|
| Oil capacity | 61.2 qts
57.9 L
|

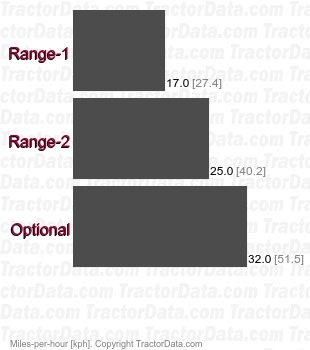

| Speeds |
| 50 KPH speed optional with suspended front axle. |
|
