Tractors > John Deere > 5603

John Deere 5603 - transmission

John Deere 5603 tractor photo
2007 - 2008
Utility tractor
Next model:John Deere 5101E
more John Deere 5603 specifications...






Transmission:

Transmission:PowrReverser
Type:power shuttle
Gears:12 forward and reverse
Clutch:wet disc
Oil capacity:46 qts [43.5 L]
Four gears (1-4) in three ranges (A-C) with left-hand reverser lever. Forward to rear shuttle shifting may be done while moving without the clutch. Gear shifts (1-4) are synchronized with the clutch. The tractor must be stopped to shift ranges.

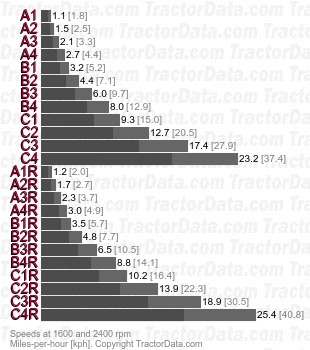

Speeds:With 18.4R30 rear tires.
5603 PowrReverser power shuttle speeds
