Farmall 564 - transmission

No photo available
Utility tractor
more Farmall 564 specifications...





Note: the Farmall model 564 is the same as the International Harvester 654. The following data is from the 654 listing.


Transmission:

Type:partially synchronized
Gears:8 forward and 4 reverse
Oil capacity:44.4 qts [42.0 L]
Speeds:With 11-36 rear tires.

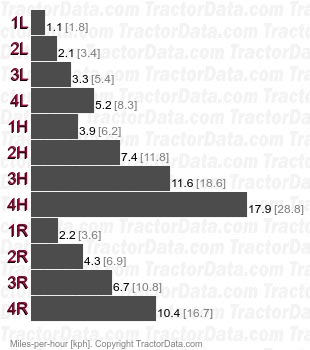

564  partially synchronized speeds


Transmission:

Transmission:Agriomatic S
Type:partial power shift
Gears:12 forward and 4 reverse
Oil capacity:37 qts [35.0 L]
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle.
Speeds:With 11-36 rear tires.

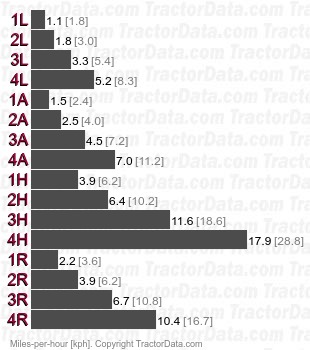

564 Agriomatic S partial power shift speeds
