Yanmar F195

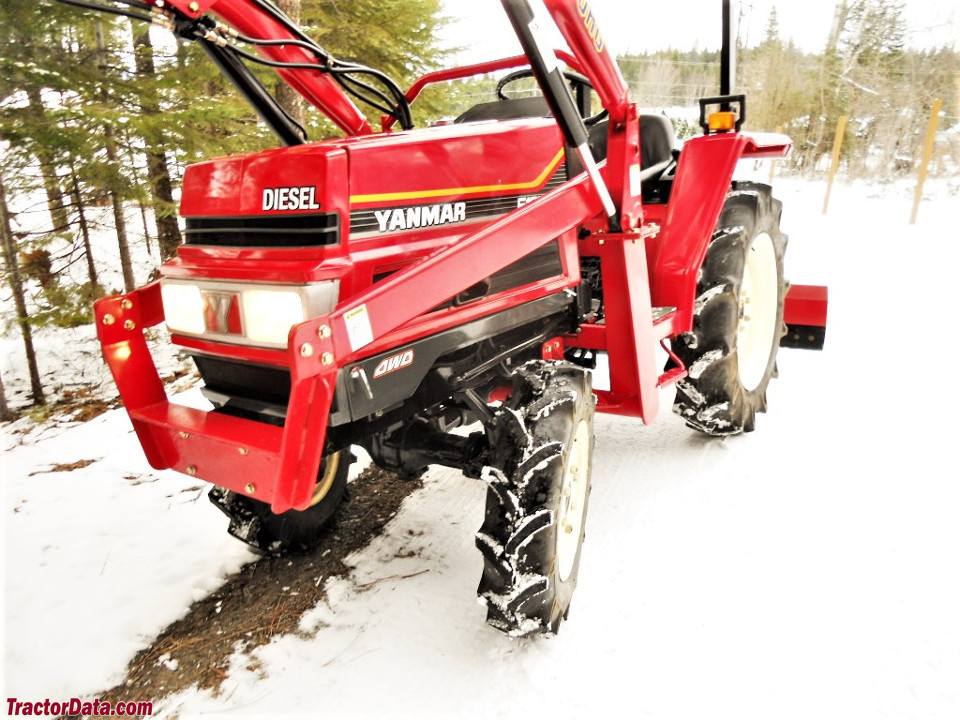

Yanmar F195 tractor photo
1987 - 1992
Compact Utility tractor
Series:F195F215
Production
Manufacturer:Yanmar
Type:Compact Utility tractor
Variants
F195:2WD gear
F195D:4WD gear
FX195:2WD power shift
FX195D:4WD power shift
Yanmar F195 Power
Engine:18.7 hp
13.9 kW
Yanmar F195 Engine
Yanmar 1.3L 3-cyl diesel
Fuel tank:6.6 gal
25.0 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Cab:Open operator station.
Transmissions:9-speed gear
 creeper
Transmission details ...
Photos
No photos of the Yanmar F195 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Tractor hitch
Rear Type:JIS0
Power Take-off (PTO)
Rear RPM:540 (1.375)
Engine RPM:571@2500
785@2500
1209@2500
Dimensions & Tires
Wheelbase:58.7 inches
149 cm
Weight:1764 to 1896 pounds
Front tire:4.00-12
2WD Rear tire:8.3-24
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:16
Battery
Number:1
Volts:12
Amp-hours:75
