Ford 2000 Engine


Ford 2000 tractor photo
1962 - 1975
Model year
Utility tractor
Series map:
2000
3000
36.0hp
46.7hp
Engines overview
Ford 2.6L 3-cyl gasoline
Ford 2.6L 3-cyl diesel
Engine Detail
Ford
gasoline
3-cylinder
liquid-cooled
Displacement158 ci
2.6 L
Bore/Stroke4.20x3.80 inches
107 x 97 mm
Power36 hp
26.8 kW
Air cleanerpaper element
Compression8:1
Rated RPM1900 (early)
 2000 (late)
Torque102.7 lb-ft
139.3 Nm
Torque RPM1350
Firing order1-2-3
Starter volts12
Coolant capacity13.2 qts
12.5 L
SparkplugAutolite AG5
Sparkplug gap0.025 inches
0.635 mm
Point gap0.022-0.028 inches
0.559 mm
Engine Oil

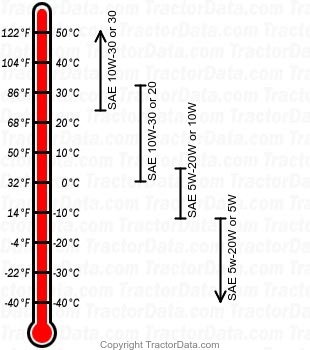

2000 gasoline engine oil chart
Oil capacity8 qts*The operator's manual lists 8 US quarts. Depending on year, sales literature lists between 6 and 8 quarts.
7.6 L
Ford 2000 Engine

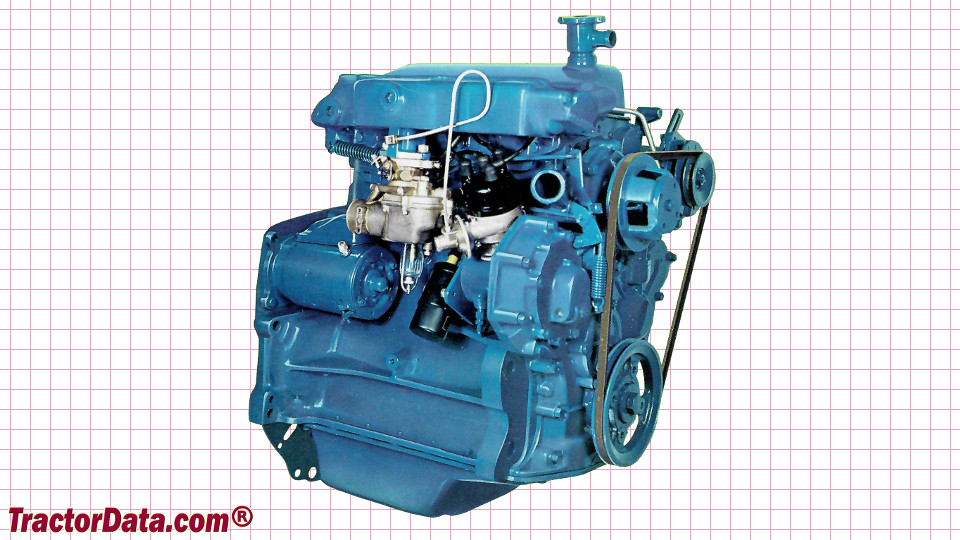

Ford 2000 engine image
Engine Detail
Ford
diesel
3-cylinder
liquid-cooled
Displacement158 ci
2.6 L
Bore/Stroke4.20x3.80 inches
107 x 97 mm
Power39 hp
29.1 kW
Compression16.5:1
Rated RPM2000
Torque105.6 lb-ft
143.2 Nm
Torque RPM1200
Firing order1-2-3
Starter volts12
Coolant capacity13.2 qts
12.5 L
Engine Oil

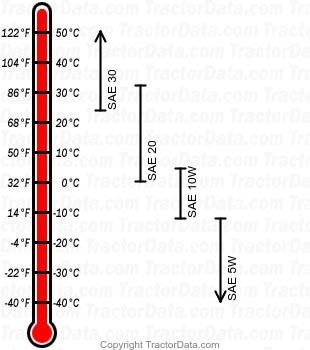

2000 diesel engine oil chart
Oil capacity8 qts*The operator's manual lists 8 US quarts. Depending on year, sales literature lists between 6 and 8 quarts.
7.6 L
