Tractors > J.I. Case > 701-B

J.I. Case 701-B

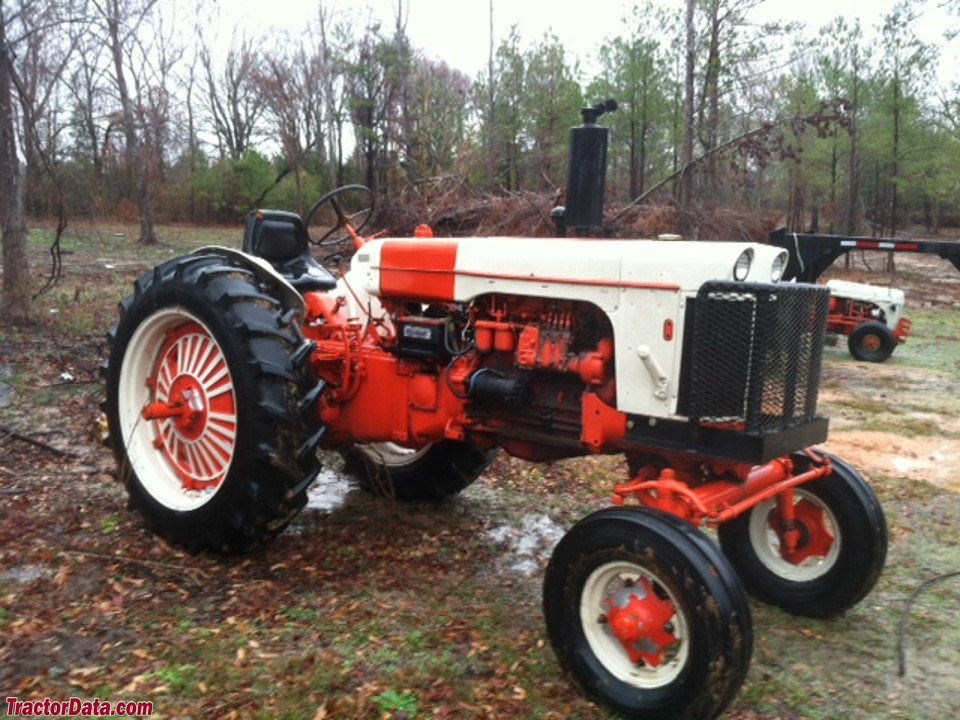

J.I. Case 701-B tractor photo
1958 - 1959   700B Series
Row-Crop tractor
Previous model:J.I. Case 401






Production:

Manufacturer:J.I. Case
Factory:Racine, Wisconsin, USA
Total built:465


Variants:

700B:diesel standard
701B:diesel row-crop
702B:diesel orchard
703B:diesel high-crop
710B:gas standard
711B:gas row-crop
712B:gas orchard
713B:gas high-crop


J.I. Case 701-B Engine:

   J.I. Case 4.4L 4-cyl diesel
full engine details ...


Capacity:



Power Take-off (PTO):

Rear RPM:540


Dimensions & Tires:

Wheelbase:92.25 inches [234 cm]
Weight:7,590 lbs [3442 kg]
full dimensions and tires ...


J.I. Case 701-B attachments:

 front-end loader
all 701-B attachments ...


701-B Serial Numbers:


how to read serial numbers...



J.I. Case 701-B Power:

Belt (claimed):54 hp [40.3 kW]
Drawbar (tested):46.44 hp [34.6 kW]
PTO (tested):51.20 hp [38.2 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:power
Brakes:mechanical differential disc
Cab:Open operator station.


Belt Pulley:

Diameter:10.5 inches [26 cm]
Width:7.25 inches [18 cm]
RPM:1166
Speed:3205 ft/min [976.88 meters/min]


Battery:

Number:2
Volts:6
