Tractors > Deutz-Allis > 6060

Deutz-Allis 6060 - transmission

Deutz-Allis 6060 tractor photo
1985 - 1988
Row-Crop tractor
Previous model:Allis Chalmers 6060
Series next:Deutz-Allis 6070
more Deutz-Allis 6060 specifications...





Note: the Deutz-Allis model 6060 is the same as the Allis Chalmers 6060. The following data is from the 6060 listing.


Transmission:

Type:partially synchronized
Gears:8 forward and 2 reverse
Oil capacity:12 qts [11.4 L]
Two ranges with four gears in each range. Synchronized shifting between top two gears (3-4 and 7-8) in each range.

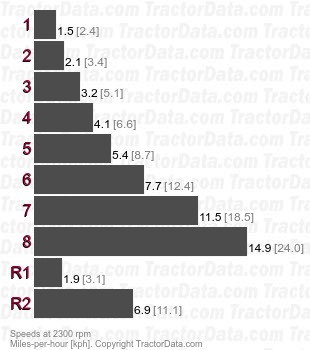

Speeds:With 15.5-38 rear tires.
6060  partially synchronized speeds
