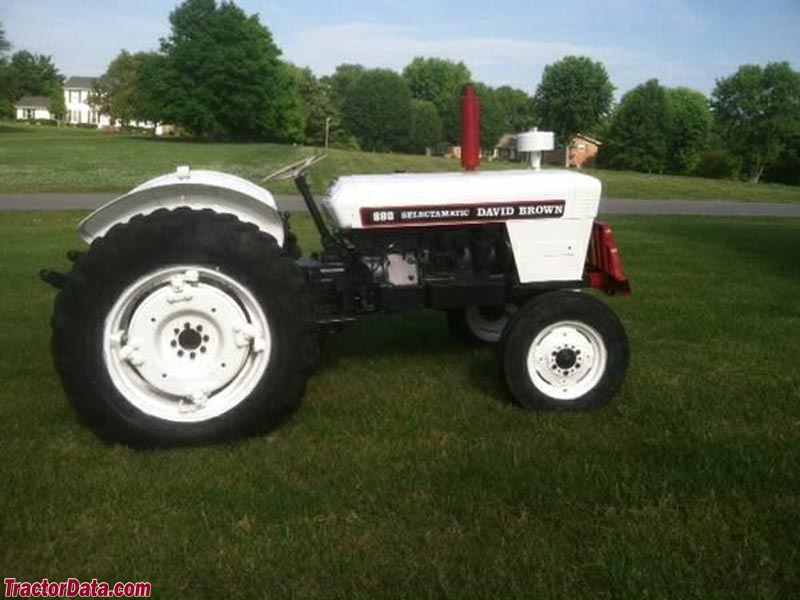

David Brown 880 Selectamatic
| | 1961 - 1971 |
|
| Selectamatic Series | | Utility tractor |
|
| Production |
| Manufacturer: | David Brown
|
| Type: | Utility tractor
|
| Factory: | Meltham Mills, Huddersfield, England
|
| Total built: | 33,378
|
| David Brown 880 Power |
| Engine (gross): | 46 hp
34.3 kW
|
| PTO (claimed): | 41 hp
30.6 kW
|
| Plows: | 3
|
| Drawbar (tested): | 35.56 hp
26.5 kW
|
| PTO (tested): | 42.29 hp
31.5 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | manual
|
| Brakes: | differential mechanical expanding shoe
|
| Cab: | Open operator station. Cab optional.
|
| Transmissions: | 6-speed gear
|
| | 12-speed gear
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2000 psi
137.9 bar
|
| Pump flow: | 7.2 gpm
27.3 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift (at ends): | 1800 lbs
816 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540/1000
|
| Engine RPM: | 540@1800
1000@2000
|
| 880 Serial Numbers |
| 1965: | 530001
|
| 1966: | 531022
|
| 1967: | 539410
|
| 1968: | 546000
|
| 1969: | 551553
|
| 1970: | 557013
|
| 1971: | 560766
|
| Final: | 563379
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 8.5 inches
21 cm
|
| Width: | 5.687 inches
14 cm
|
| RPM: | 1555
|
| Speed: | 3160 ft/min
963.17 meters/min
|
| Page information |
| Last update: | November 30, 2020
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
David Brown 880 photos...
Full dimensions and tires ...
