John Deere 4350
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Mannheim, Baden-Württemberg, Germany | |
| John Deere 4350 Engine | |
| John Deere 7.6L 6-cyl diesel | |
 Engine details ... |
| John Deere 4350 Transmission | |
| 16-speed partial power shift | |
 Transmission details ... |
| John Deere 4350 Power | |
| Engine | 138 hp 102.9 kW |
| Mechanical | |
| Four-wheel drive | |
| Steering | hydrostatic power |
| Wet disc brakes | |
| SG2 Cab standard with air-conditioning. | |

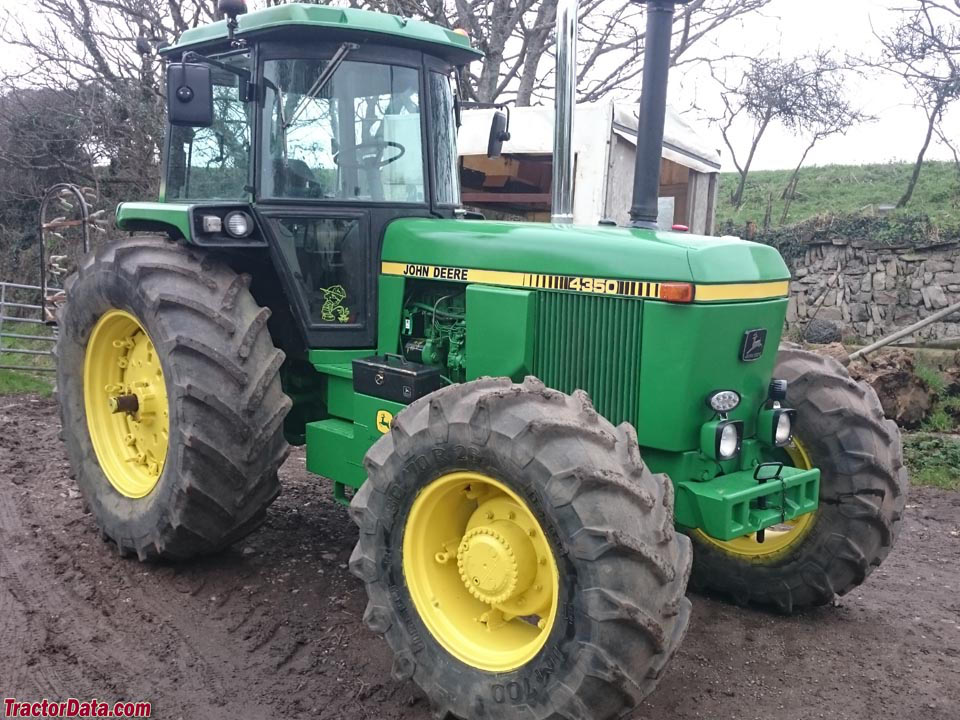

| Photos | |
 | |
 John Deere 4350 photos... | |
| Hydraulics | |
| Type | closed center |
| Pressure | 2496 psi 172.1 bar |
| Valves | 2 or 3 |
| Pump flow | 25.4 gpm 96.1 lpm |
| Tractor hitch | |
| Rear Type | IIIN/II |
| Control | position and lower-link draft control |
| Rear lift | 13283 lbs 6025 kg |
| Rear Arms | telecopic lower links |
| quick hitch *Optional. | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic disc |
| Rear PTO Type | 540/1000 |
| Dimensions & Tires | |
| Wheelbase | 105.3 inches 267 cm |
| Weight | 14088 lbs 6390 kg |
| Front tire | 16.9-28 |
| Rear tire | 20.8-38 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 90 |
| Batteries | 2 |
| Battery volts | 12 |
| Battery AH | 88 |
| References | |
 | |
| Trattore 4350S published by John Deere |
