Tractors > Hinomoto > NX200

Hinomoto NX200

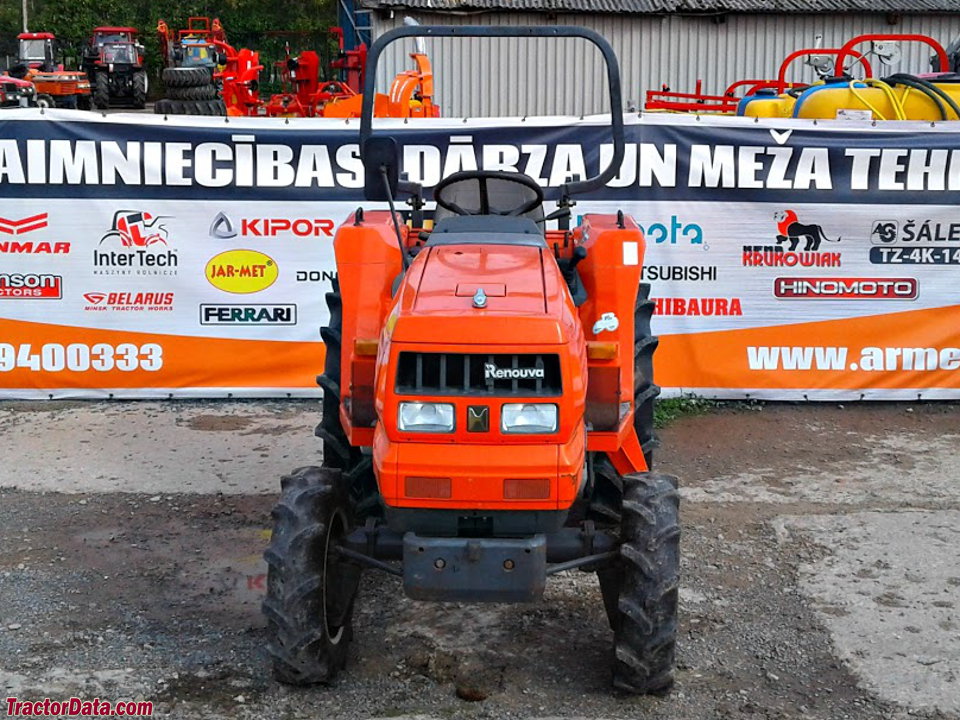

Hinomoto NX200 tractor photo
1993 - 1995   NX Series
Compact Utility tractor
Series next:Hinomoto NX220





Note: the Hinomoto model NX200 is the same as the Kubota GL200. The following data is from the GL200 listing.


Production:

Distributor:Hinomoto
Manufacturer:Kubota


Variants:

GL200:ROPS
GL200Q:cab


Hinomoto NX200 Engine:

   Kubota 1.4L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.1 gal [26.9 L]


3-Point Hitch:

Rear Type:I


Power Take-off (PTO):

Rear RPM:546/772/947/1254 (1.375)


Dimensions & Tires:

ROPS Wheelbase:61 inches [154 cm]
Cab Wheelbase:62.4 inches [158 cm]
Weight:2414 to 2745 pounds
Front tire:6-14
Rear tire:8.3-24
full dimensions and tires ...


NX200 Serial Numbers:


how to read serial numbers...



Hinomoto NX200 Power:

Engine:19.7 hp [14.7 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:mechanical wet disc
Cab:Two-post ROPS. Cab optional.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12


Page information:
