Tractors > Massey Ferguson > 590

Massey Ferguson 590

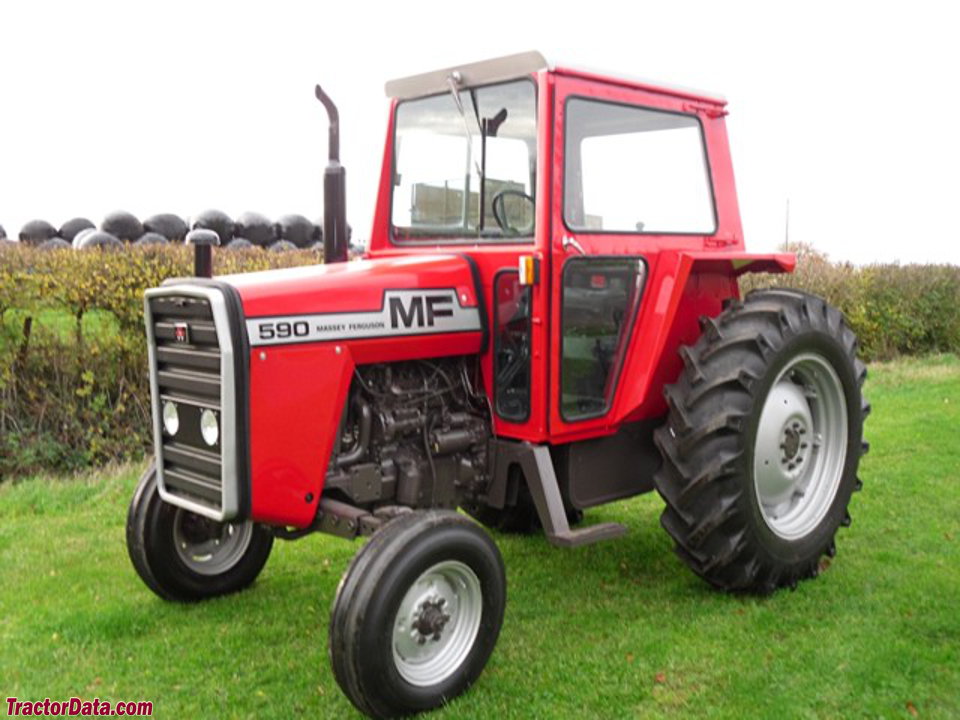

Massey Ferguson 590 tractor photo
1977 - 1982   500 Series
Row-Crop tractor
Series back:Massey Ferguson 575






Production:

Manufacturer:Massey Ferguson


Massey Ferguson 590 Engine:

   Perkins 4.1L 4-cyl diesel
full engine details ...


Capacity:

Fuel:25.9 gal [98.0 L]


3-Point Hitch:

Rear Type:II
Rear lift (at 24"/610mm):4900 lbs [2222 kg]
 5818 lbs [2639 kg] (optional)


Power Take-off (PTO):

Rear PTO:live
 independent optional
Clutch:mechanical dry disc (live)
 hydraulic (independent)
Rear RPM:540 (1.375)
 1000 (1.375)
Engine RPM:540@1893
1000@1900


Dimensions & Tires:

Wheelbase:90 inches [228 cm]
Weight:6660 to 7830 pounds
Front tire:7.50-18
Rear tire:16.9-34 (2WD)
full dimensions and tires ...


590 Serial Numbers:


- Serial numbers unknown -



Massey Ferguson 590 Power:

Engine:90 hp [67.1 kW]
PTO (claimed):67.7 hp [50.5 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Cab standard with heater. ROPS available.


Hydraulics:

Pump flow:6.8 gpm [25.7 lpm] (main)
 9.2 gpm [34.8 lpm] (aux.)
