Production | |
Manufacturer: | Minneapolis-Moline |
Type: | Standard-tread tractor |
Factory: | Minneapolis, Minnesota, USA |
Original price: | $2400 (1954 ) |
Minneapolis-Moline GTB Power | |
Drawbar (claimed): | 37 hp 27.6 kW |
PTO (claimed): | 54 hp 40.3 kW |
Drawbar (tested): | 49.53 hp 36.9 kW |
Belt (tested): | 58.03 hp 43.3 kW |
Minneapolis-Moline GTB Engines | |
Minneapolis-Moline 6.6L 4-cyl gasoline | |
Minneapolis-Moline 7.0L 6-cyl diesel | |
Fuel tank: | 29 gal 109.8 L |
Engine details ... |
Mechanical | |
Chassis: | 4x2 2WD |
Steering: | manual |
Brakes: | mechanical band |
Cab: | Open operator station. |
Transmission: | 5-speed gear |
Transmission details ... |
Power Take-off (PTO) | |
Rear RPM: | 540 |
Dimensions & Tires | |
Wheelbase: | 82.5 inches 209 cm |
Weight: | 6500 lbs 2948 kg |
Front tire: | 7.50-18 |
Rear tire: | 14-34 |
Full dimensions and tires ... |
GTB Serial Numbers | |

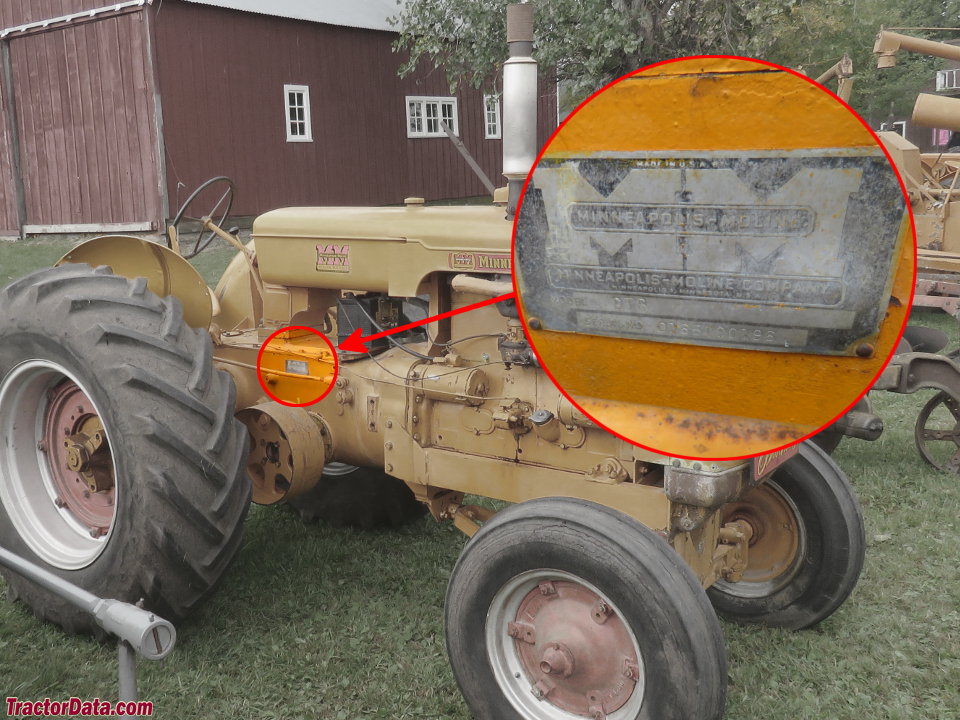

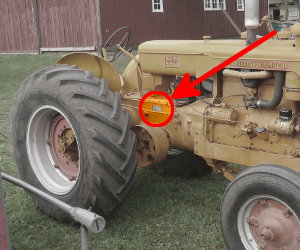

Location: | Right side of tractor frame, just ahead of operator platform. |
1947: | 164001 |
1948: | 164179 |
1948: | 0164800001 |
1949: | 0164900001 |
1950: | 016500001 |
1951: | 01601864 |
1952: | 01603397 |
1953: | 01604890 |
1954: | 01605973 |
Final: | 01606289 |
1953: | 06800001 (diesel) |
1954: | 06800002 (diesel) |
Final: | 06800850 (diesel) |
Belt Pulley | |
Diameter: | 16 inches 40 cm |
Width: | 7 inches 17 cm |
RPM: | 627 |
Speed: | 2630 ft/min 801.62 meters/min |
