    Minneapolis-Moline ZB

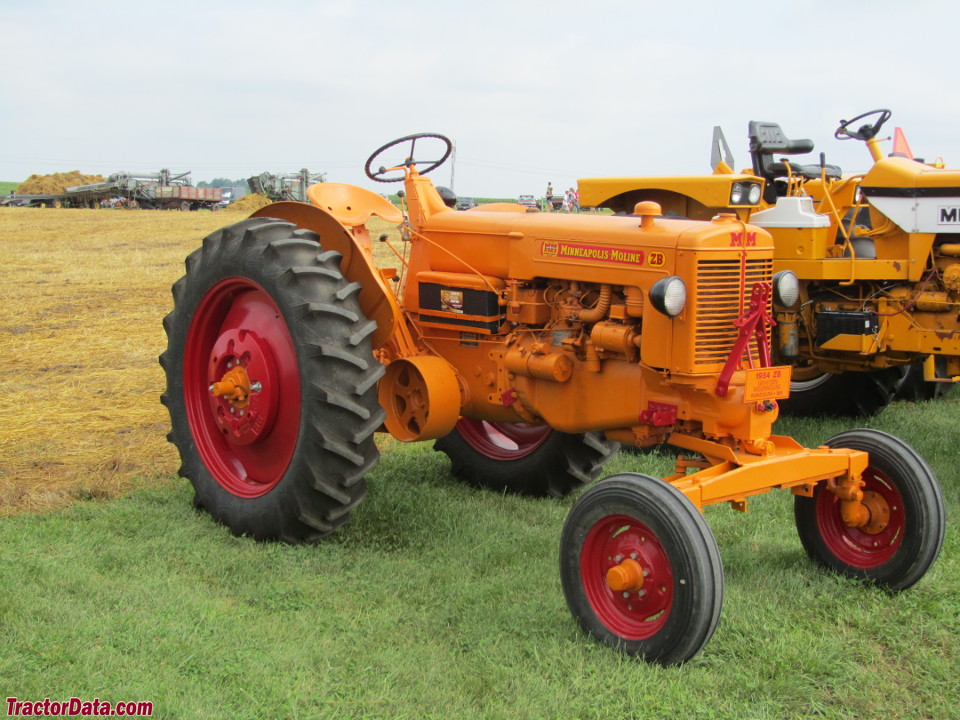

    Minneapolis-Moline ZB tractor photo
    1953 - 1955
    Row-Crop tractor
    Previous model:Minneapolis-Moline ZA






    Production:

    Manufacturer:Minneapolis-Moline
    Factory:Minneapolis, Minnesota, USA


    Variants:

    ZBU:tricycle front
    ZBN:single front wheel
    ZBE:adjustable wide front


    Minneapolis-Moline ZB Engine:

       Minneapolis-Moline 3.4L 4-cyl gasoline
    full engine details ...


    Capacity:



    Power Take-off (PTO):

    Rear PTO:transmission
    Rear RPM:540


    Dimensions & Tires:

    Wheelbase:82 inches [208 cm]
    ZBE Wheelbase:92.1 inches [233 cm]
    Weight:3750 to 3900 pounds
    Front tire:5.50x16
    Rear tire:11x38
    full dimensions and tires ...


    ZB Serial Numbers:

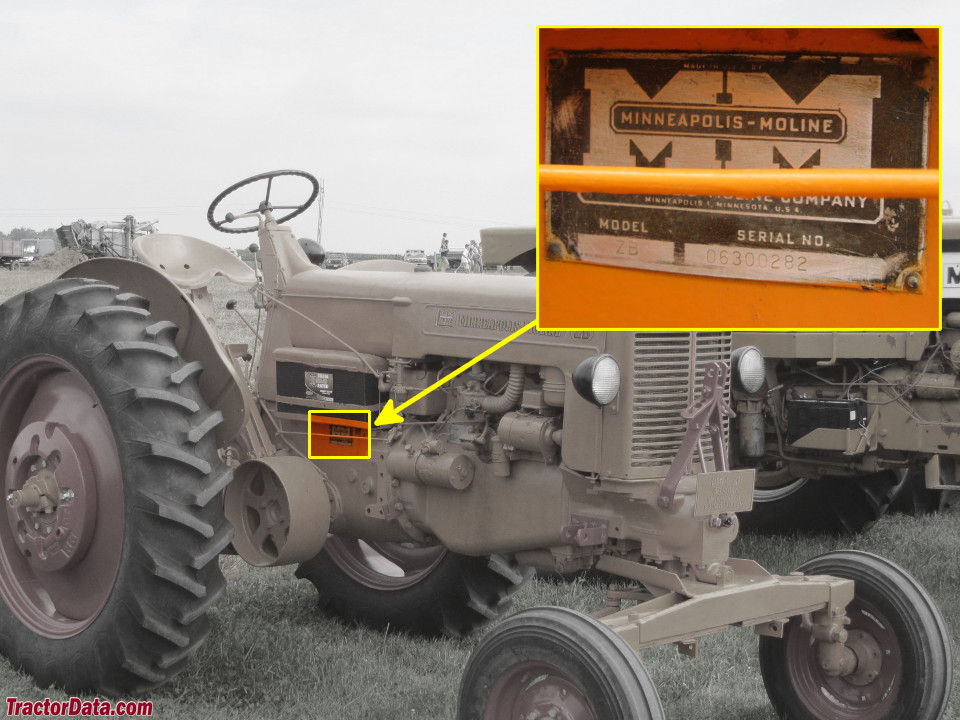

    Location:Right side of tractor frame, below battery.
    photo of ZB serial number

    1953: 06300001 (ZBE)
    1954: 06300076 (ZBE)
    1955: 06300307 (ZBE)
    Final: 06300501 (ZBE)
    1953: 06200001 (ZBU)
    1954: 06200958 (ZBU)
    1955: 06202480 (ZBU)
    Final: 06203059 (ZBU)
    1954: 06400001 (ZBN)
    1955: 06400073 (ZBN)
    Final: 06400106 (ZBN)

    how to read serial numbers...



    Minneapolis-Moline ZB Power:

    Plows:3 (14-inch)


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual worm-and-sector
    Brakes:mechanical disc
    Cab:Open operator station.


    Belt Pulley:

    Diameter:15.1 inches [38 cm]
    Width:7 inches [17 cm]
    RPM:786
    Speed:3,110 ft/min [947.93 meters/min]
