Farmall 1456 Transmission


Farmall 1456 tractor photo
1969 - 1971
56 Series
Standard-tread tractor
Series map:
1456
144.4hp*
*Estimated engine power for comparison only.

Note: the Farmall model 1456 is the same as the International Harvester 1456. The following data is from the 1456 listing.
Transmission options
8-speed
16-speed partial power shift
Transmission
Transmissiongear
Gears8 forward and 4 reverse
Oil capacity88 qts
83.3 L
Speeds
With 18.4-39 rear tires.

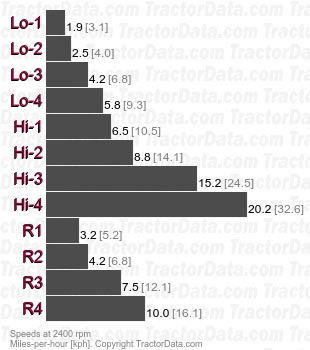

1456 gear  speeds
Transmission
TransmissionTorque Amplifier
Typepartial power shift
Gears16 forward and 8 reverse
Oil capacity88 qts
83.3 L
Speeds
With 18.4-39 rear tires.

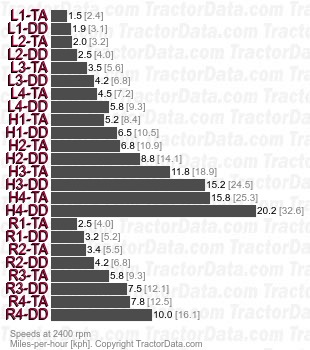

1456 Torque Amplifier partial power shift speeds
