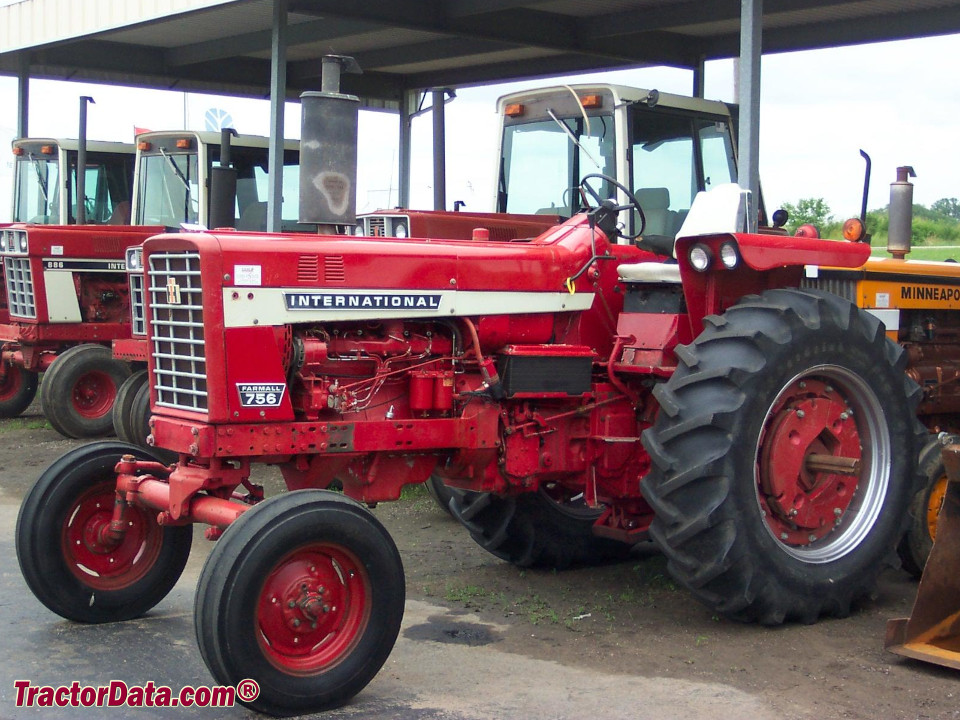

Farmall 756
|
|
| Production | |
| Manufacturer: | Farmall (a part of International Harvester) |
| Type: | Row-Crop tractor |
| The Farmall 756 was not tested at Nebraska, the tests for the Farmall 706 were used. | |
| Variants | |
| IH 756: | utility chassis |
| 756 Custom: | economy model |
| Farmall 756 Power | |
| Drawbar (claimed): | 68 hp 50.7 kW |
| PTO (claimed): | 76.5 hp 57.0 kW |
| Drawbar (tested): | 67.46 hp 50.3 kW |
| PTO (tested): | 76.56 hp 57.1 kW |
| Farmall 756 Engines | |
| International Harvester 5.1L 6-cyl diesel | |
| International Harvester 4.8L 6-cyl gasoline | |
| International Harvester 4.8L 6-cyl LP gas | |
| Fuel tank: | 33 gal 124.9 L (diesel/gas) |
| 39 gal 147.6 L (LPG) | |
 Engine details ... | |
| Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering: | hydrostatic power |
| Brakes: | independent hydraulic disc |
| Cab: | Cab optional with heat and A/C |
| Transmissions: | 8-speed |
| 16-speed | |
 Transmission details ... | |
| Photos | |
 | |
 Farmall 756 photos... | |
| Tractor hitch | |
| Rear Type: | 2 |
| Type: | IH Fast Hitch |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 |
| 540/1000 | |
| Engine RPM: | 540@2100 1000@2100 |
| Dimensions & Tires | |
| Wheelbase: | 105 inches 266 cm |
| Weight: | 8,350 lbs 3787 kg |
| Front tire: | 6.50-16 |
| Rear tire: | 15.5-38 |
 Full dimensions and tires ... | |
| 756 Serial Numbers | |
| Location: | Clutch housing, left side. |
| 1967 (Farmall): | 7501 |
| 1968 (Farmall): | 9904 |
| 1969 (Farmall): | 14125 |
| 1970 (Farmall): | 17832 |
| 1971 (Farmall): | 18374 |
| 1967 (IH): | 7501 |
| 1968 (IH): | 7672 |
| 1969 (IH): | 8164 |
| 1970 (IH): | 8284 |
| 1971 (IH): | 8427 |
| Electrical | |
| Charging system: | alternator |
| Charging amps: | 55 |
| Batteries: | 1 (gas/LPG) |
| 2 (diesel) | |
| Battery volts: | 12 (gas/LPG) |
| 6 (diesel) | |
| Battery AH: | 60 (gas/LPG) |
| 130 (diesel) | |
