Tractors > Holder > Cultitrac A12

Holder Cultitrac A12

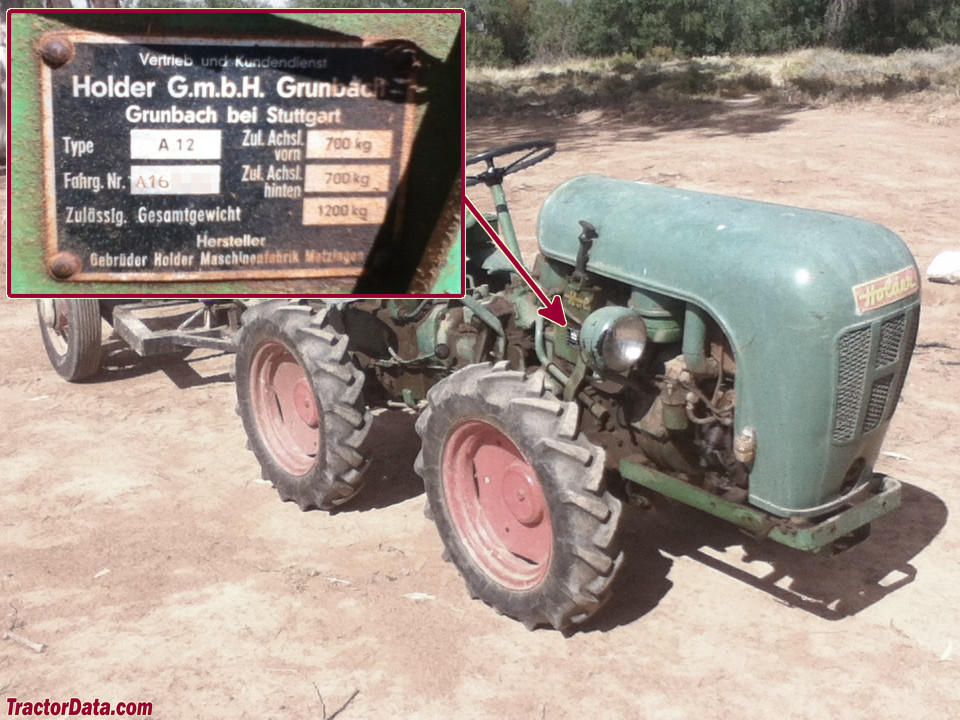

Holder Cultitrac A12 tractor photo
1956 - ????






Production:

Manufacturer:Holder


Holder A12 Engine:

   Sachs 0.6L 1-cyl diesel
full engine details ...


Capacity:

Fuel:2.5 gal [9.5 L]
Hydraulic system:1 gal [3.8 L]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/920


Dimensions & Tires:

Wheelbase:45 inches [114 cm]
Weight:1500 lbs [680 kg]
Front tire:5.00x16
Rear tire:5.00x16
full dimensions and tires ...


A12 Serial Numbers:


- Serial numbers unknown -



Holder A12 Power:

Engine:12 hp [8.9 kW]


Mechanical:

Chassis:4x4 articulated 4WD
Brakes:drum
Cab:Open operator station.


Hydraulics:

Type:open center
Capacity:1 gal [3.8 L]
Pressure:1850 psi [127.6 bar]
Pump flow:2.6 gpm [9.8 lpm]


Belt Pulley:

Diameter:8.25 inches [20 cm]
Width:4.75 inches [12 cm]
RPM:1550


Battery:

Volts:12
