Belarus LTZ-40

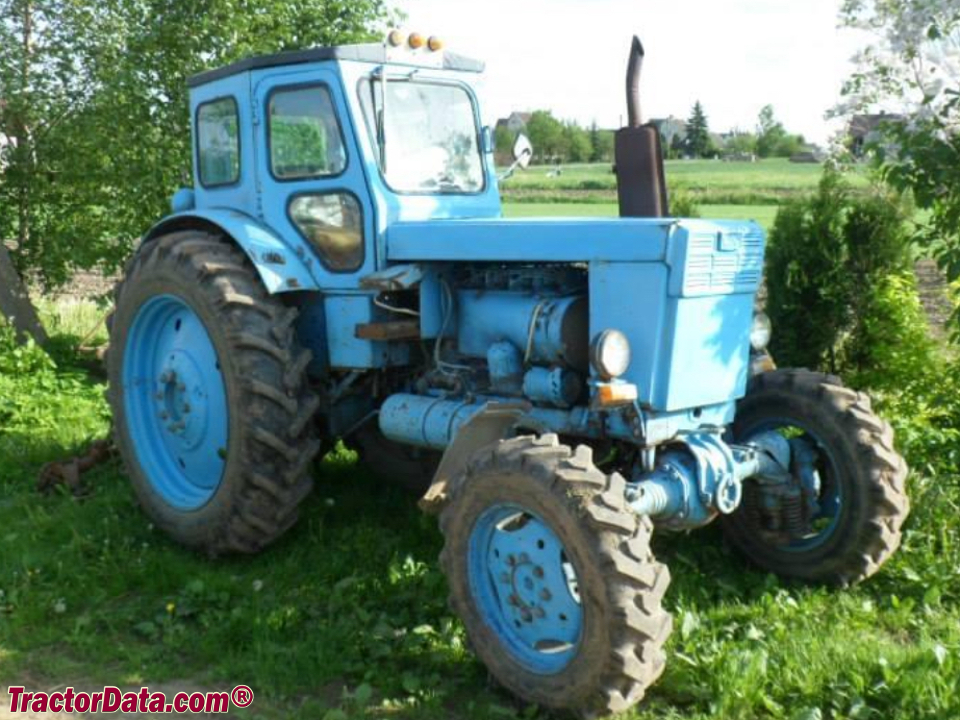

Belarus LTZ-40 tractor photo
1968 - 1973
Row-Crop tractor
T-40
Series:LTZ-40
Production
Manufacturer:Belarus
Type:Row-Crop tractor
Factory:Lipetsk, Russia
Marketed as "Belarus LTZ-40" in the West, the T-40M was the successor to the original Lipetsk-built T-40 offering the D-144 engine and a new hood. In some markets, the T-40AM was sold as the T-40A Super.
Variants
T-40M:2WD
T-40AM:4WD
Belarus LTZ-40 Power
Engine:50 hp
37.3 kW
Belarus LTZ-40 Engine
Vladimir 4.1L 4-cyl diesel
Fuel tank:19.6 gal
74.2 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power assist
Brakes:band
Cab:Cab standard.
Transmission:7-speed gear
Transmission details ...
Photos
No photos of the Belarus LTZ-40 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Total flow:11.4 gpm
43.1 lpm
Tractor hitch
Rear lift:4,410 lbs
2000 kg
Power Take-off (PTO)
Rear RPM:540/ground
Dimensions & Tires
Wheelbase:89.4 inches
227 cm
Weight:5623 to 6064 pounds
Front tire:6.50-16
Rear tire:13.6-38
Full dimensions and tires ...
