Tractors > Allis Chalmers > FD3

Allis Chalmers FD3

Allis Chalmers FD3 tractor photo






Production:

Manufacturer:Allis Chalmers
Factory:France


Allis Chalmers FD3 Engines:

   Vendeuvre 1.6L 2-cyl diesel
   Perkins 1.6L 4-cyl diesel
full engine details ...


Capacity:

Fuel:11.9 gal [45.0 L]


Power Take-off (PTO):

Rear RPM:540/1000
Mid RPM:1000


Dimensions & Tires:

Weight:3,150 lbs [1428 kg]
Front tire:450x16
Rear tire:10x28
full dimensions and tires ...

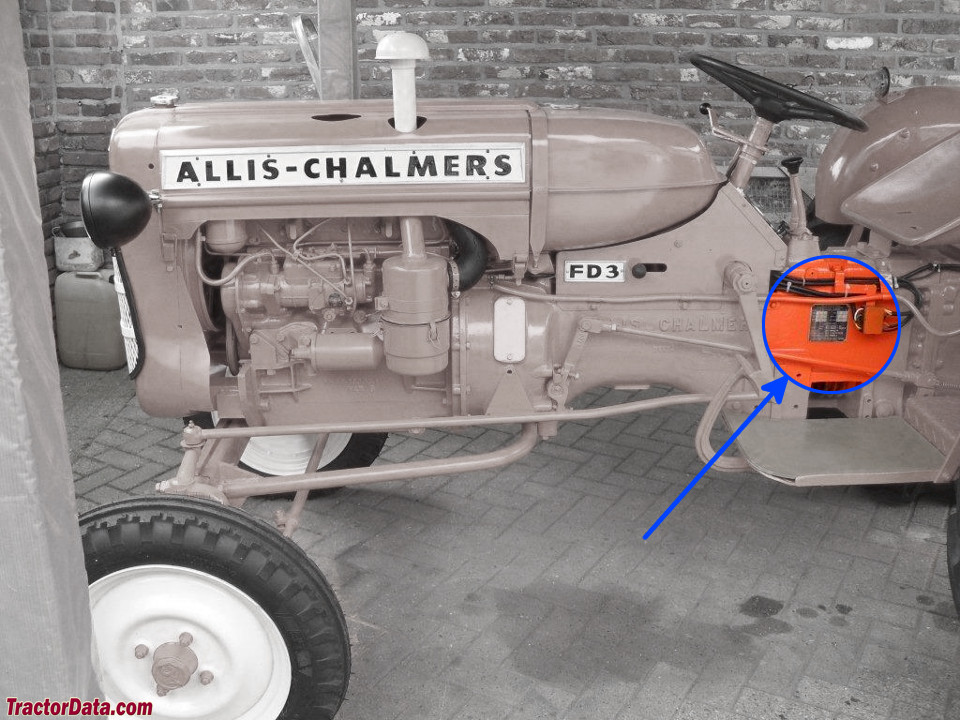

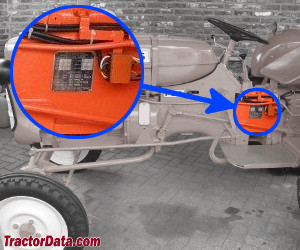

FD3 Serial Numbers:

Location:Left-center on tractor frame.

- Serial numbers unknown -



Allis Chalmers FD3 Power:

Engine:25 hp [18.6 kW]


Mechanical:

Chassis:4x2 2WD
Cab:Open operator station.
