Chamberlain 4290 - transmission

Chamberlain 4290 tractor photo
1985 - 1986   90 Series
Row-Crop tractor
Series next:Chamberlain 4490
Series back:Chamberlain 4090
more Chamberlain 4290 specifications...






Transmission:

Transmission:Hi-Lo
Type:partial power shift
Gears:12 forward and 4 reverse
Clutch:14-inch dry disc
Oil capacity:40.1 qts [38.0 L]
Three gears (1-3) in two ranges (Slow-Fast) with hydraulic Hi-Lo power shift. Range shifts are synchronized with the clutch. Tractor must be stopped to shift gears (1-3 and R).

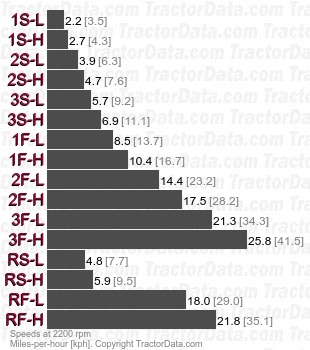

Speeds:With 24.5x32 rear tires.
4290 Hi-Lo partial power shift speeds

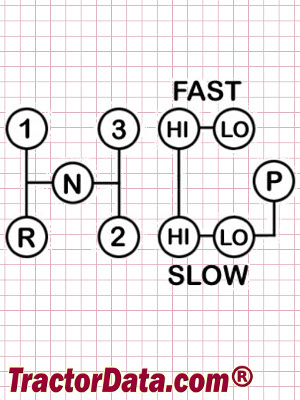

Chamberlain 4290 Hi-Lo transmission photo
