Tractors > Chamberlain > 4090

Chamberlain 4090 - transmission

Chamberlain 4090 tractor photo
1985 - 1986   90 Series
Row-Crop tractor
Series next:Chamberlain 4290
more Chamberlain 4090 specifications...






Transmission:

Transmission:Hi-Lo
Type:partial power shift
Gears:12 forward and 4 reverse
Clutch:14-inch dry disc
Oil capacity:45.4 qts [43.0 L]

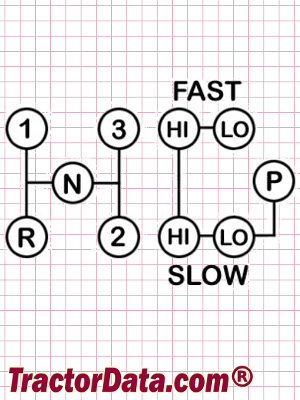

Three gears (1-3) in two ranges (Slow-Fast) with hydraulic Hi-Lo power shift. Range shifts are synchronized with the clutch. Tractor must be stopped to shift gears (1-3 and R).
Speeds:With 23.1x34 rear tires.

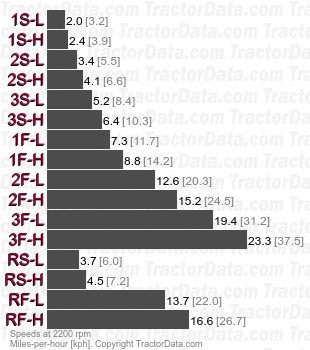

4090 Hi-Lo partial power shift speeds

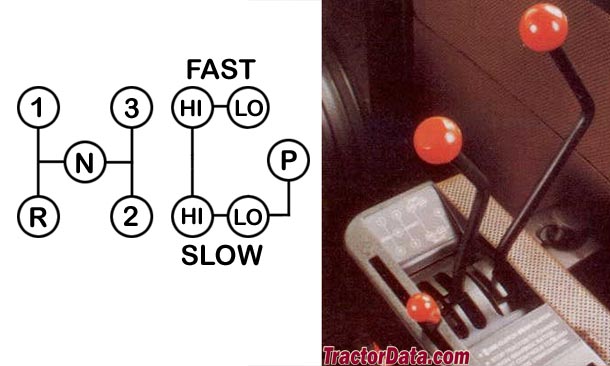

Chamberlain 4090 Hi-Lo transmission photo
