Chamberlain 40K

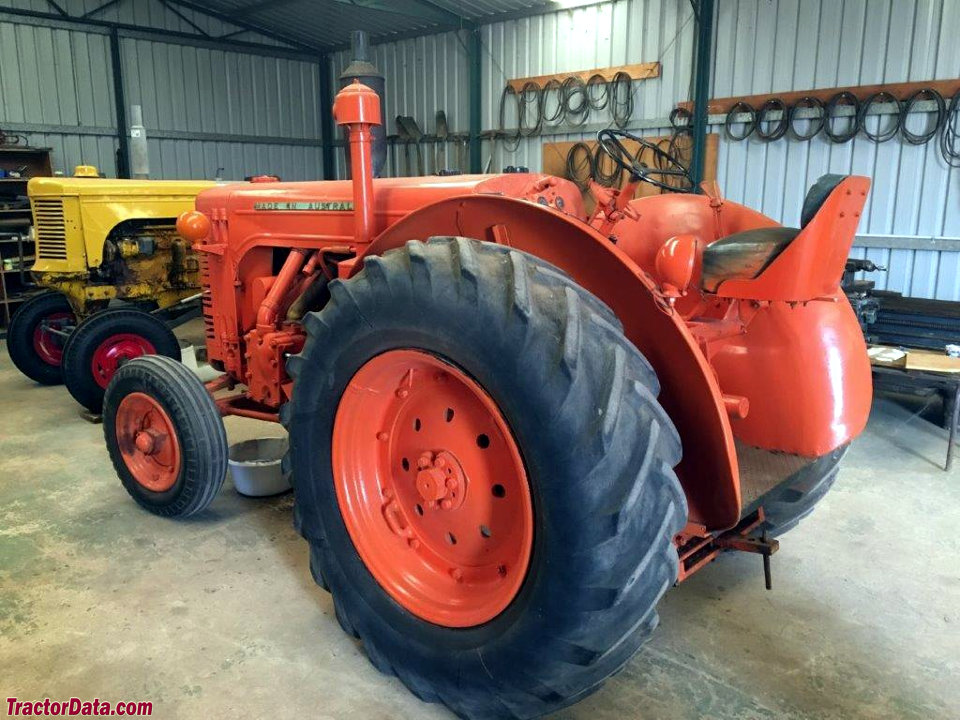

Chamberlain 40K tractor photo
1950 - 1950
Standard-tread tractor






Production:

Manufacturer:Chamberlain
Factory:Welshpool, Australia


Chamberlain 40K Engine:

   Chamberlain 6.0L 2-cyl kerosene
full engine details ...


Capacity:

Fuel:27.6 gal [104.5 L]
Aux. fuel:4.2 gal [15.9 L]


Power Take-off (PTO):

Rear RPM:540


Dimensions & Tires:

Wheelbase:83 inches [210 cm]
Weight:8500 lbs [3855 kg]
Front tire:7.50x18
Rear tire:15.00x30
full dimensions and tires ...


40K Serial Numbers:

1950: 1
Final: 403

how to read serial numbers...



Chamberlain 40K Power:

Engine:48.5 hp [36.2 kW]
Belt (claimed):40 hp [29.8 kW]


Mechanical:

Chassis:4x2 2WD
Final drives:bull gear
Steering:mechanical - recirculating ball
Cab:Open operator station.


Belt Pulley:

Diameter:13 inches [33 cm]
Width:7 inches [17 cm]
RPM:810
Speed:2740 ft/min [835.15 meters/min]


Battery:
