Cub Cadet 7233 Engine
|
|
| Engine Detail | |
| Mitsubishi K3G | |
| diesel | |
| 3-cylinder | |
| liquid-cooled overhead valve (OHV) | |
| Displacement | 75.4 ci 1.2 L |
| Bore/Stroke | 3.228x3.071 inches 82 x 78 mm |
| Power | 23 hp 17.2 kW |
| Fuel system | direct injection |
| Air cleaner | dry |
| Compression | 18.7:1 |
| Rated RPM | 2500 |
| Idle RPM | 970-2750 |
| Firing order | 1-3-2 |
| Starter volts | 12 |
| Coolant capacity | 5.6 qts 5.3 L |
| Coolant change | 1000 h |
| Intake valve clearance | 0.010 inches*Cold 0.254 mm |
| Exhaust valve clearance | 0.010 inches*Cold 0.254 mm |

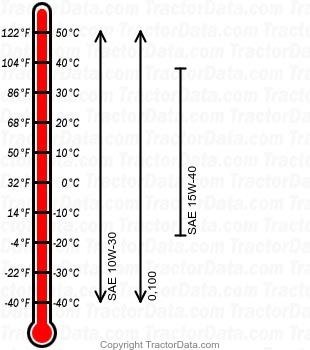

| Engine Oil | |
| |
| Oil capacity | 3.7 qts 3.5 L |
| Oil change | 100 h |
