Ford 940
|
|
| Production | |
| Manufacturer | Ford |
| Row-Crop tractor | |
| Built in Highland Park, Michigan, USA | |
| Original price | $2,561 (1957) |
| Ford 940 Engines | |
| Ford 2.8L 4-cyl gasoline | |
| Ford 2.8L 4-cyl LP gas | |
 Engine details ... |
| Ford 940 Transmission | |
| 4-speed unsynchronized gear | |
 Transmission details ... |
| Ford 940 Power | |
| Belt (claimed) | 40 hp 29.8 kW |
| Plows | 3 (14-inch) |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| power assist optional | |
| Differential mechanical expanding shoe brakes | |
| Open operator station. | |

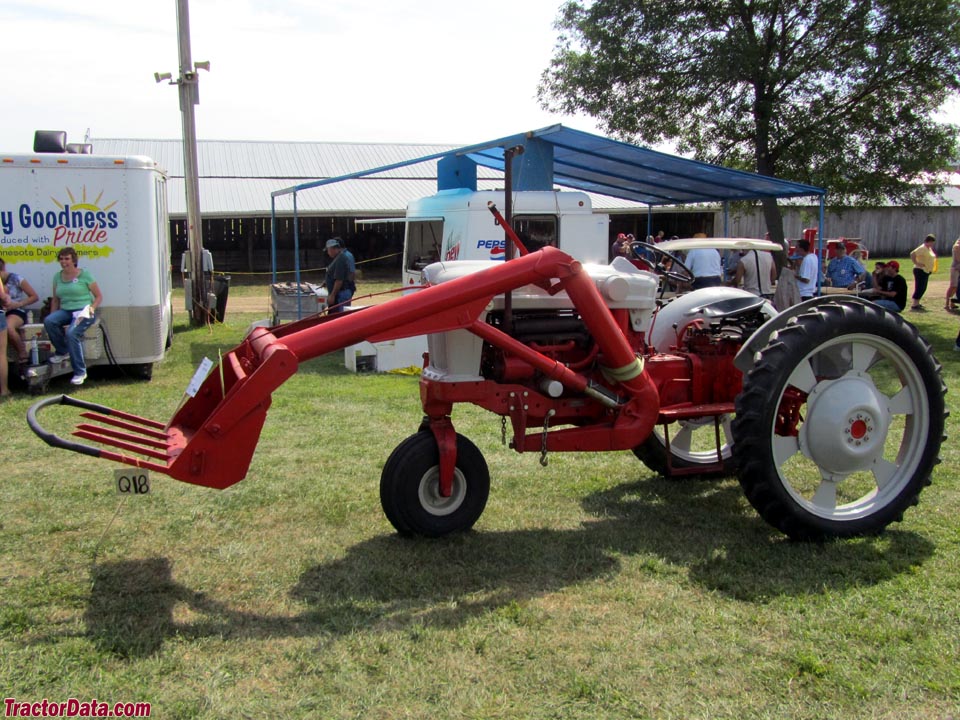

| Photos | |
 | |
 Ford 940 photos... | |
| Tractor hitch | |
| Rear Type | I |
| Rear lift | 1,250 lbs 567 kg |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 85.3 inches 216 cm |
| Weight | 3280 to 3626 pounds |
| Front tire | 6x16 |
| Rear tire | 12x28 |
 Full dimensions and tires ... | |
| 940 Serial Number Location | |
 | |
| Serial number stamped into the starter mount on the left side of the engine. |
| Electrical | |
| Ground | positive |
| Charging system | generator |
| Charging amps | 20 |
| Battery volts | 6 |
| References | |
 | |
| Accessories and special items for your Ford tracotr published in 1958 | |
| 1955-1960 Tractor Shop Manual (SE-8175) published in 1961 | |
| Ford Tricycle Tractors published in 1956 |
